詳細情報 |
|||
| 紫外線ランプの電源: | 5kW | 該当する業界: | 製造工場 |
|---|---|---|---|
| 乾燥時間: | 調整可能 | 包装形態: | ウッダーパッケージ |
| コーティング材料: | Water-basedコーティング | コーティング精度: | 高精度 |
| 給餌方法: | 下側 選択可能 | 塗装方法: | DOD インクジェットヘッド |
| ハイライト: | fully automated spin coating machine,6-station pulp molding coater,high efficiency internal coating solution |
||
製品の説明
Fully Automated 6-Station Spin Coating Machine for Pulp Molded Products - High Efficiency Internal Coating Solution
Composition of Production Line

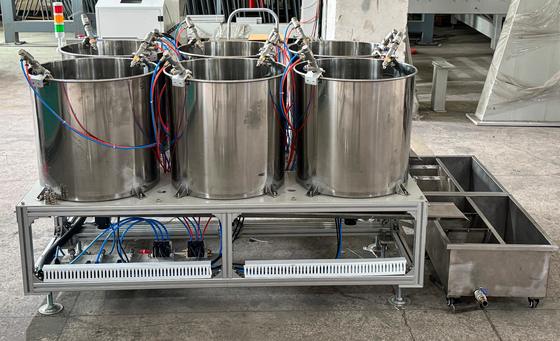

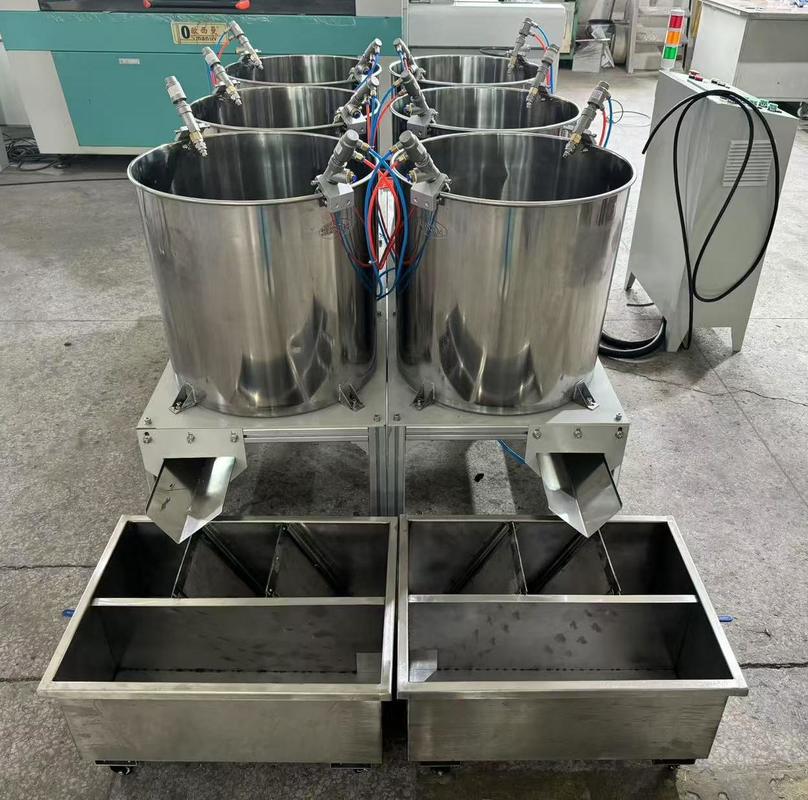

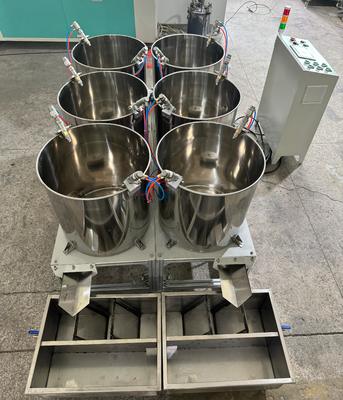

This system integrates an automated feeding conveyor, a precision 6-station rotary indexing table, infrared drying tunnels, a high-precision slurry supply system, PLC control cabinet, and a finished product discharge conveyor. It is designed for seamless integration into existing pulp molding production lines.
Product Description

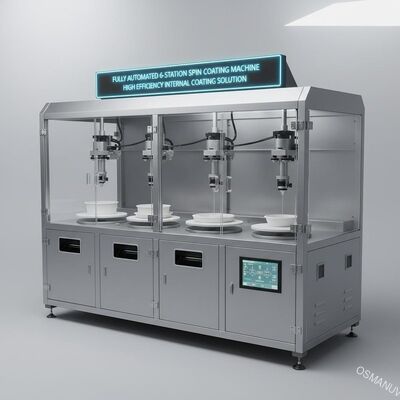

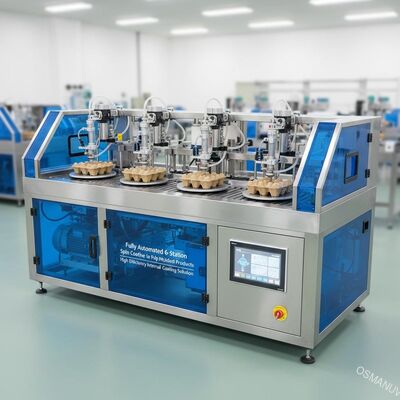

Our fully automated 6-station spin coating machine is engineered specifically for applying uniform internal barrier or decorative coatings to pulp molded products, such as food containers, tableware, and industrial packaging. The 6-station design allows for simultaneous loading, coating, spinning, and unloading, ensuring maximum production throughput and consistent, high-quality results.
Technical Parameters
| Parameter | Specification |
|---|---|
| Number of Stations | 6 (Rotary Indexing) |
| Coating Applicable | Water-based barrier coatings (PLA, PFAS-free), decorative colors |
| Control System | Siemens/Honeywell PLC & Touch Screen HMI |
| Power Supply | 380V / 50Hz / 3 Phase (Customizable) |
| Air Consumption | 0.6-0.8 MPa |
| Production Capacity | Up to 15-25 cycles per minute (Customizable based on product) |
| Coating Uniformity | > 98% |
| Machine Footprint | Customizable design to fit your space |
Application

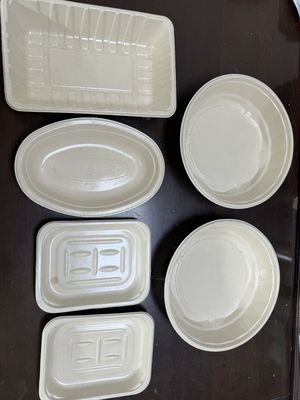

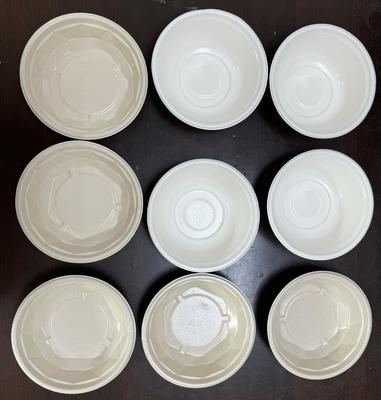

Ideal for applying internal water-proof, oil-proof, or aesthetic coatings to a wide range of pulp molded products, including:
-
Food Trays and Clamshells
-
Bowls and Plates
-
Cup Carriers
-
Egg Cartons
-
Industrial Protective Packaging
Customization
We understand that every production line is unique. This machine is highly customizable. Key customizable aspects include the fixture molds for your specific product shape, slurry tank capacity, drying time per station, and overall machine dimensions to fit your factory layout.
Feature
-
High Efficiency: 6-station design for continuous, non-stop production.
-
Precision Coating: Ensures a uniform, consistent coating layer with minimal waste.
-
User-Friendly HMI: Simple operation and recipe management for different products.
-
Robust Construction: Built with stainless steel and corrosion-resistant materials for durability.
-
Energy Saving: Optimized slurry application and efficient drying reduce material and energy consumption.
Support and Services
We provide comprehensive support including installation supervision, operator training, remote technical assistance, and a readily available supply of spare parts. Our service team is committed to ensuring your machine's optimal performance.
Packing and Shipping
The machine is disassembled into major modules for safe transport. All parts are securely packed in wooden crates suitable for sea shipping. We handle all export formalities to ensure smooth delivery to your port.
FAQ
-
Q: Can this machine handle different product sizes?
-
A: Yes, by customizing the product-specific fixture molds, the machine can be quickly adapted for various product sizes and shapes.
-
-
Q: What is the lead time?
-
A: Standard lead time is 8-10 weeks, which may vary for highly customized orders.
-
-
Q: Do you provide training?
-
A: Yes, we provide on-site installation and comprehensive training for your operators and maintenance staff.
-
