Bagasse Tableware Single-Station Spin Coater Precision Coating System for Food Packaging Samples
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | OSMANUV |
| 証明: | CE |
| モデル番号: | OSM-XT-450T |
| ドキュメント: | CE-Single station spin caot...ne.pdf |
お支払配送条件:
| 最小注文数量: | 1セット |
|---|---|
| 価格: | negotiable |
| パッケージの詳細: | 木製パッケージ |
| 受渡し時間: | 30日 |
| 支払条件: | T/T |
| 供給の能力: | 交渉 |
|
詳細情報 |
|||
| 製品名: | 単ステーションのスピンコーティングマシン | 寸法（l*w*h）: | カスタマイズされたサイズ、700mm L*420mm W*1135mm H |
|---|---|---|---|
| 力: | 500W | 電圧: | 380V 50Hz |
| 重さ: | 純重量：120 kg;総重量：130 kg | 駆動型タイプ: | 電気、その他、機械的 |
| 保証: | 1年、1年、12か月 | 状態: | 新しい |
| ハイライト: | bagasse tableware spin coater,precision coating system for food packaging,pulp molding spin coater machine |
||
製品の説明

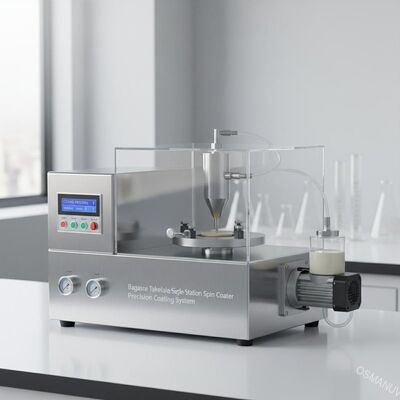

Bagasse Tableware Single-Station Spin Coater Precision Coating System for Food Packaging Samples
Product Description
This single-station spin coater is specifically designed for coating sample development of bagasse tableware and food packaging. It enables precise control of coating thickness and uniformity, making it ideal for R&D and small-batch production of eco-friendly disposable products.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | OSM-XT-450T |
| Max Sample Diameter | 380 mm (Customizable) |
| Rotation Speed | 100–1400 rpm (programmable) |
| Coating Uniformity | ±2% |
| Control | Touch screen with recipe storage |
| Power | 380V / 50Hz |
Application
Coating process development for bagasse pulp tableware, food containers, and sustainable packaging samples.
Customization
-
Customizable sample holding fixtures
-
Customizable speed and acceleration profiles
-
Customizable data logging functions
Feature
-
High precision coating control
-
Easy-to-clean design
-
Compact and user-friendly
-
Repeatable process results
Support and Services
-
Online training and setup support
-
1-year warranty
-
Process debugging assistance
Packing and Shipping
-
Compact foam-secured carton
-
Air freight available
FAQ
Q: What is the typical coating thickness range?
A: It's up to your product's size, internal surface roughness and structure complexity.
