High-Speed Automatic Rotary Coating Line for Pulp Molded Food Packaging - Precision Internal Barrier Solution
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | Osmanuv |
| 証明: | CE |
| モデル番号: | OSM-XT-2400T |
| ドキュメント: | PULP MOLDING AUTOMATIC SPIN...NE.pdf |
お支払配送条件:
| 最小注文数量: | 1セット |
|---|---|
| 価格: | negotiable |
| パッケージの詳細: | 木製の箱 |
| 受渡し時間: | 35日 |
| 支払条件: | T/T |
| 供給の能力: | 交渉 |
|
詳細情報 |
|||
| 自動グレード: | 自動 | パッキング: | 標準の木製ケース |
|---|---|---|---|
| ライト: | 赤外線IRチューブ | コーティング材料: | 様々な材料 |
| コーティングコスト: | 低コスト | 駆動型タイプ: | 電気 |
| 状態: | 新しい | ワーキングステーション: | 24ステーション |
| ハイライト: | high-speed rotary coating line,automatic pulp molding coater,precision internal barrier coating machine |
||
製品の説明

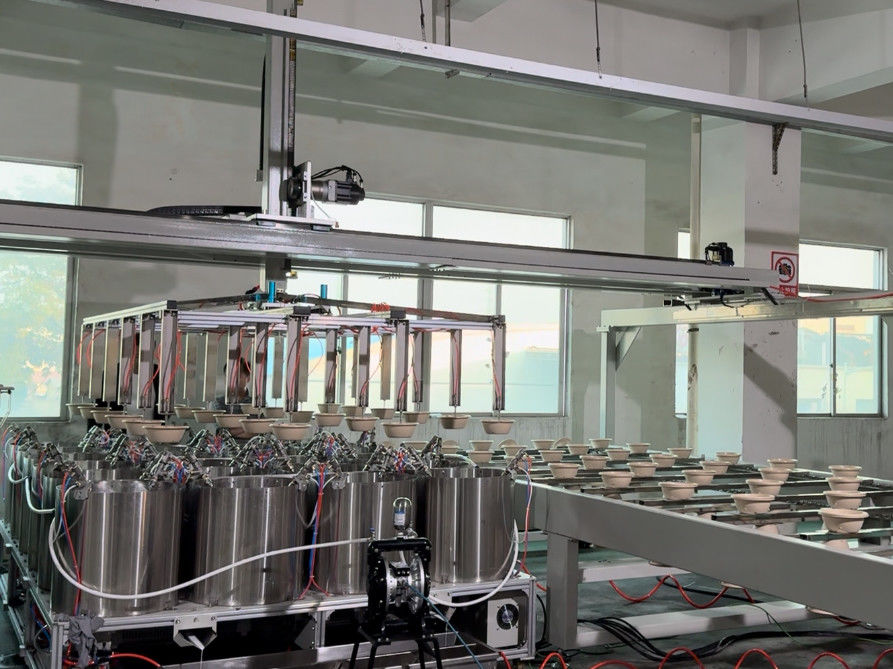

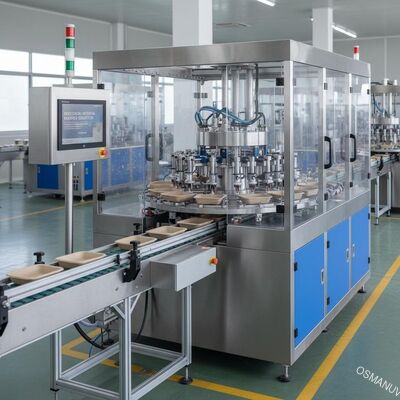

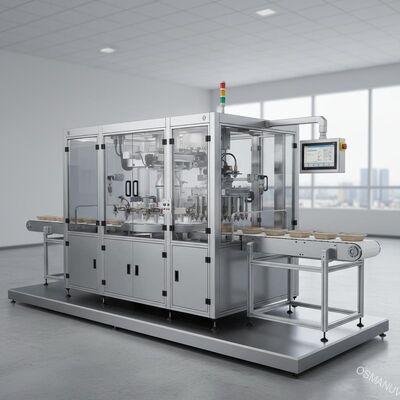

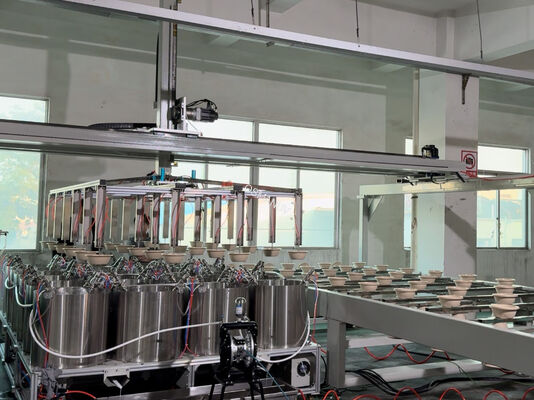

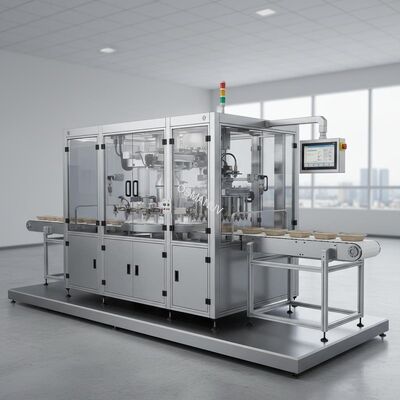

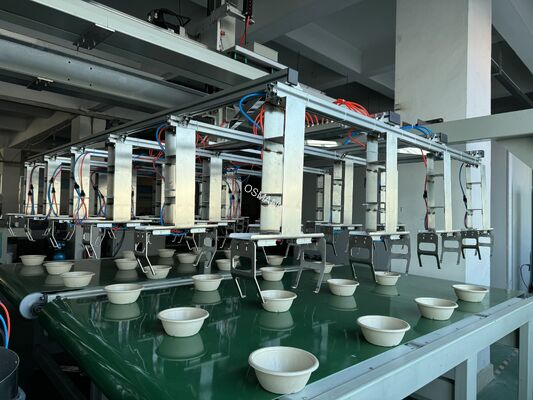

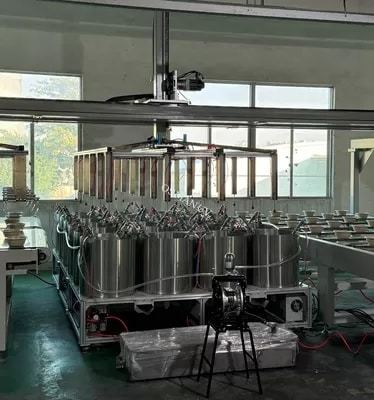

High-Speed Automatic Rotary Coating Line for Pulp Molded Food Packaging - Precision Internal Barrier Solution
Keywords: pulp molding coating line, automatic internal coating, food grade coating machine, customizable rotary coating system
Composition of Production Line:
Automated loading system, precision rotary coating stations, multi-zone thermal curing oven, UV drying module, quality inspection station, robotic unloading system.
Product Description:
This fully automatic rotary coating line applies uniform, food-safe internal coatings to pulp molded products (e.g., food containers, tableware). It ensures excellent water/oil resistance and compliance with international food safety standards.
Technical Parameters:
| Parameter | Specification |
|---|---|
| Coating Thickness | 0.03-0.25 mm (adjustable) |
| Line Speed | 10-40 cycles/min (customizable) |
| Power Supply | 380V/50Hz/3Phase (configurable) |
| Drying Method | Thermal/UV hybrid (customizable) |
| Control System | Siemens PLC + 15" HMI with IoT connectivity |
| Coating Material | Water-based coatings (customizable) |
| Footprint | ~20m x 4m x 3m (customizable layout) |
Application:

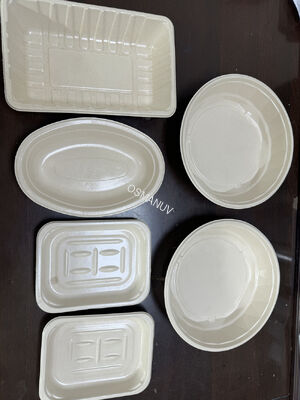

Internal coating for pulp molded food packaging, disposable tableware, and industrial packaging products.
Customization:
Fully customizable coating thickness, line speed, drying method, and material compatibility to meet specific production requirements.
Feature:
-
100% coating coverage guarantee
-
Energy-saving heat recovery system
-
Quick-change mandrels for different products
-
Compliance with FDA/EFSA standards
Support and Services:
Installation supervision, operator training, 24/7 remote support, annual maintenance contracts.
Packing and Shipping:
Export-standard wooden crates, waterproof wrapping, FOB/CIF terms available.
FAQ:
Q: Can it handle different product sizes?
A: Yes, the line is customizable with quick-change fixtures for various dimensions.
