24 Station Automated Spin Coating Line for Waterproof Pulp Molded Tableware Coating
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | OSMANUV |
| 証明: | ISO9001 |
| モデル番号: | OSM-GL-3200W、OSM-SLJ-XZ3200A、OSM-XT-3200T、OSM-IR-2400T |
| ドキュメント: | Version 2.0 of 24-station s...on.pdf |
お支払配送条件:
| 最小注文数量: | 1セット |
|---|---|
| 価格: | negotiable |
| パッケージの詳細: | 木製パッケージ |
| 受渡し時間: | 55days |
| 支払条件: | T/T |
| 供給の能力: | 交渉 |
|
詳細情報 |
|||
| 総電力: | 13kw | 製品サイズ: | 直径350-420mm |
|---|---|---|---|
| 回転速度: | 最大1400rmp/1分 | コーティング機能: | 耐水、耐油、耐高温、耐スティッキング |
| アフターサービスの提供: | ビデオ テクニカル サポート、オンライン サポート、利用できる海外第三者サポート | 自動グレード: | 自動、半自動、マニュアル、その他 |
| 保証: | 1年 | 状態: | 新しい |
| ハイライト: | 24 station automated spin coating line,automated pulp molding coating machine,waterproof tableware spin coating machine |
||
製品の説明
24 Station Automated Spin Coating Line for Waterproof Pulp Molded Tableware Coating
Product Description:

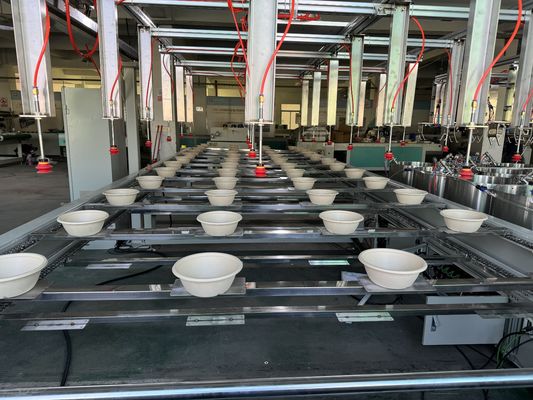

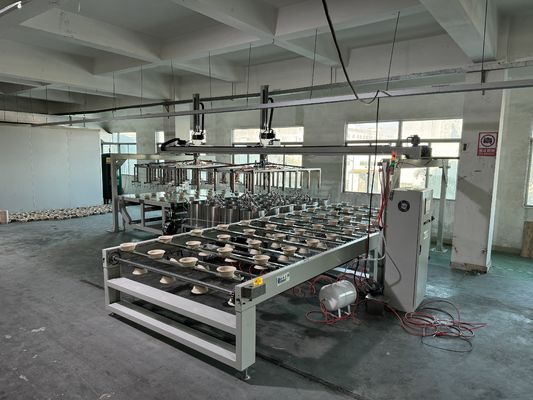

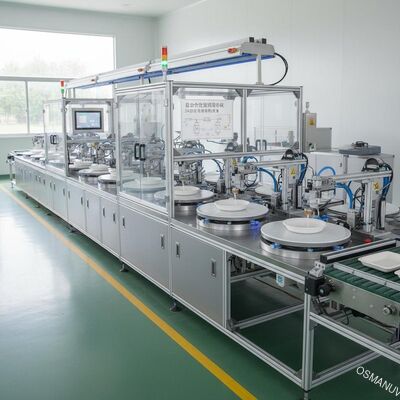

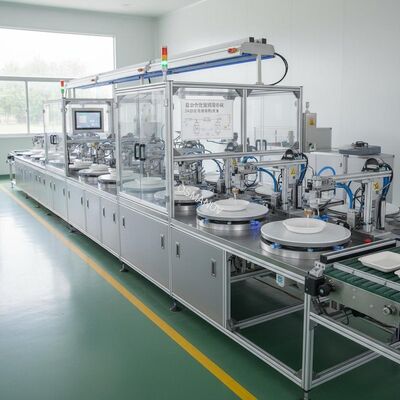

This fully automated 24-station spin coating line is specifically engineered for applying uniform, waterproof coatings to pulp molded tableware such as plates, bowls, and food containers. The system integrates a double-station gantry robot for high-speed loading/unloading, 24 precision spin coating devices for consistent 360-degree coverage, and a 24-meter IR drying tunnel for rapid curing. This complete line ensures a high-quality, food-safe barrier that enhances product durability and liquid resistance.
Composition of the Line:
-
6.4 meters Pre-conveyor
-

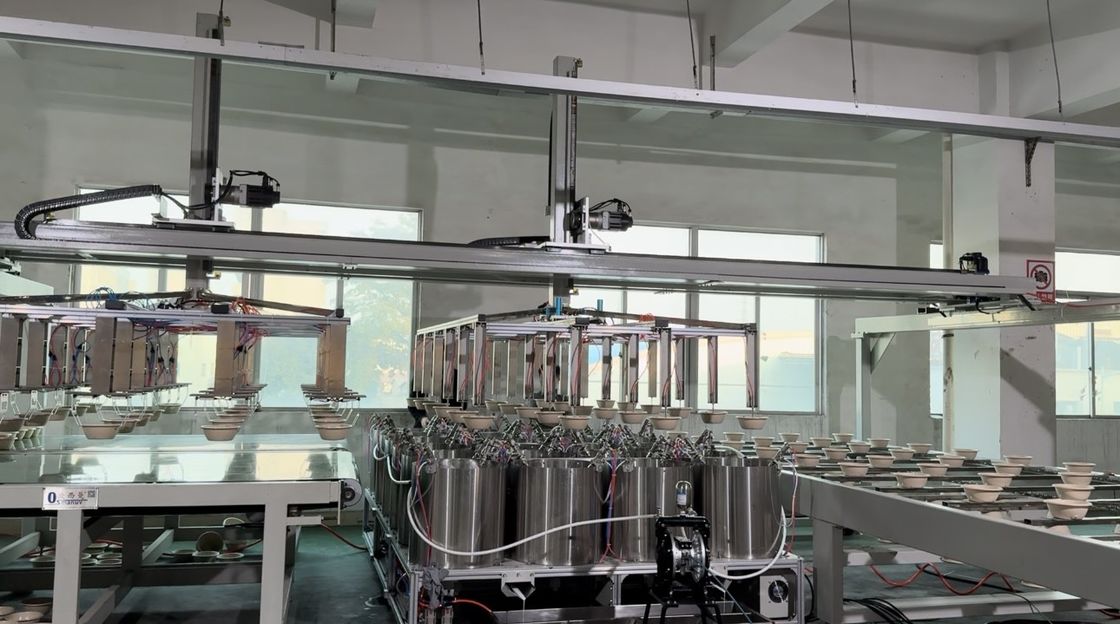

Double-station Gantry Robot
-

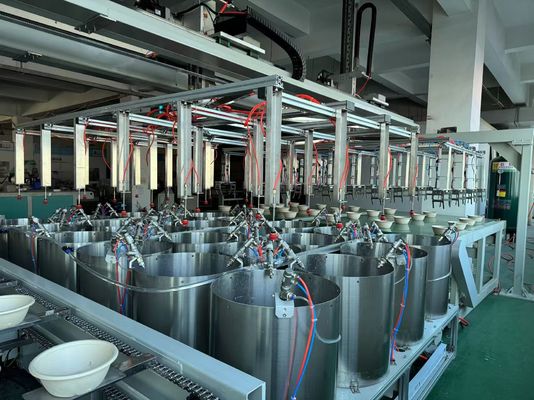

24-station Automatic Spin Coating Device
-

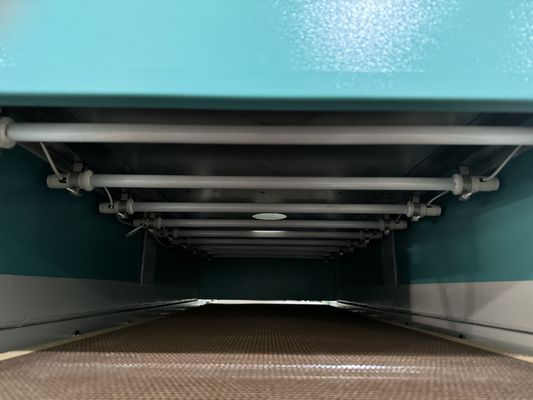

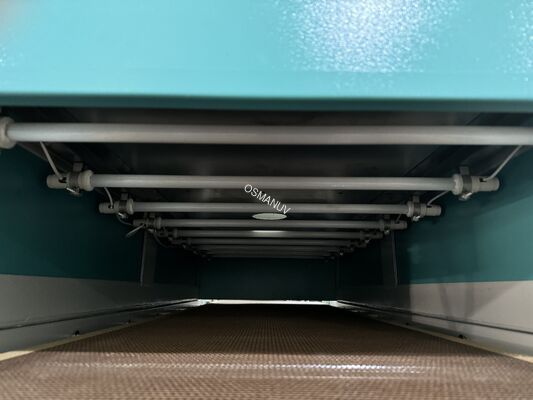

24 meters IR Drying Machine
Technical Parameters:
| No. | Parameter Name | Specification |
|---|---|---|
| 1 | Product Name | 24-Station Spin Coating Line |
| 2 | Gantry Robot Cycle Time | 40seconds/48 pieces |
| 3 | Spin Coating Stations | 24 Stations |
| 4 | IR Drying Tunnel Length | 24 meters (18m Heating + 2.5m Cooling+3.5m loding area) |
| 5 | Drying Temperature Range | Ambient -200°C Adjustable |
| 6 | Line Control System | Delta PLC & Servo System |
| 7 | Coating Uniformity | > 99% |
Application:
Perfect for applying biodegradable waterproof coatings to pulp molded food containers, plates, bowls, and other food service packaging products.
Customization:
This complete production line is customizable. We can adjust the spin coating parameters, drying temperature profile, and conveyor speed to match your specific coating material and production requirements.
Feature:
-
Complete automation from loading to drying minimizes labor costs
-
24-station design enables high-volume production capacity
-
Precision spin coating ensures uniform coverage on complex 3D shapes
-
Integrated IR drying with cooling zone for immediate packaging
Support and Services:
-
One-year warranty on entire production line
-
On-site installation and commissioning supervision
-
Lifetime technical support and operator training
-
Remote diagnostics and troubleshooting
Packing and Shipping:
-
Each component is disassembled and securely packed in weatherproof wooden crates
-
FOB shipping terms
-
60 working days delivery after order confirmation
-
Professional installation guidance provided
FAQ:
-
Q: What's the advantage of spin coating versus spray coating for pulp tableware?
A: Spin coating provides more uniform coverage with less material waste, particularly effective for complex-shaped items like bowls and containers. The process is highly customizable for different viscosity coatings. -
Q: Can this line handle different sizes of tableware simultaneously?
A: The system can be customized with quick-change fixtures to accommodate different product sizes, though optimal efficiency is achieved when running similar-sized products in batches.
