Spin Coating Line for Eco-Friendly Tableware | Precision Internal Coating Solution
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | Osmanuv |
| 証明: | ISO9001 |
| モデル番号: | OSM-XT-2400T |
| ドキュメント: | PULP MOLDING AUTOMATIC SPIN...NE.pdf |
お支払配送条件:
| 最小注文数量: | 1セット |
|---|---|
| 価格: | negotiable |
| パッケージの詳細: | 木製の箱 |
| 受渡し時間: | 30~45日 |
| 支払条件: | T/T |
| 供給の能力: | 交渉 |
|
詳細情報 |
|||
| 機械モデル: | ZP-1300＃ | 基板: | 繊維セメントボード |
|---|---|---|---|
| 装飾: | UVスポット 質感 サンディ効果 | 最高速度: | 5000p/時間 |
| 冷却方法: | 空冷 | コーティング数量: | 10〜16g/sqm |
| 光源: | UVライト | コンベアベルト材料: | テフロン |
| ハイライト: | eco-friendly tableware spin coating line,precision internal coating solution,pulp molding coating machine |
||
製品の説明

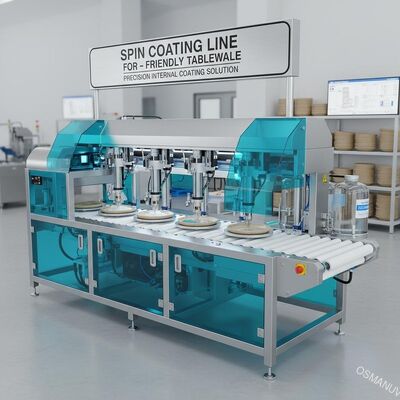

Spin Coating Line for Eco-Friendly Tableware | Precision Internal Coating Solution
1. Composition of Production Line

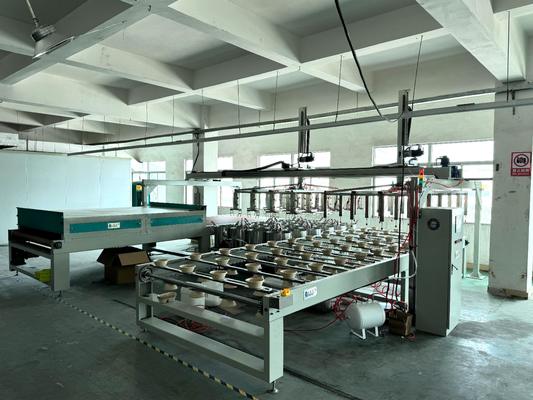

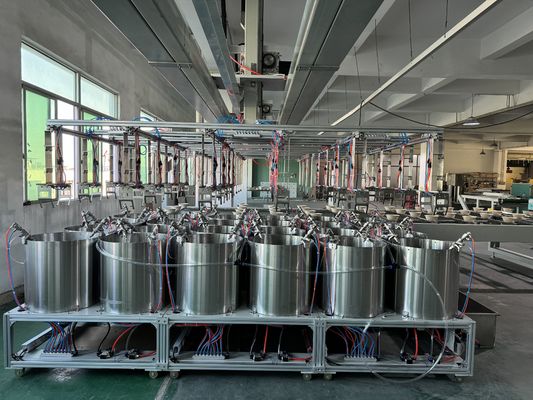

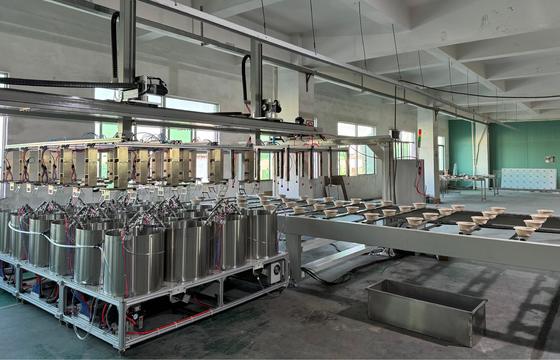

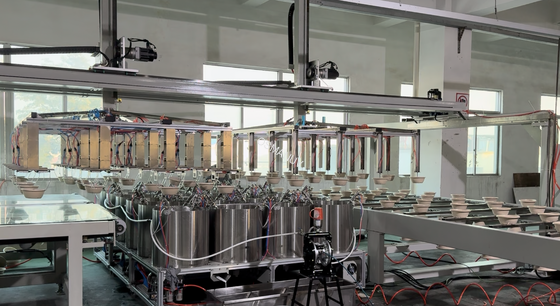

This automated line includes: an automatic feeding system, precision spin coater, transition conveyor, multi-stage drying tunnel (IR + hot air), cooling section, and off-loading robotic arm.
2. Product Description
Our precision spin coating line is specifically engineered for applying uniform water-based barrier or release coatings to the interior of green tableware (e.g., molded pulp, bagasse, PLA). It ensures a consistent, pinhole-free film thickness, enhancing product performance for liquid and oil resistance.
3. Technical Parameters
| Parameter | Details |
|---|---|
| Model | SC-GT100 (Standard Model, Customizable) |
| Coating Type | Aqueous-based coatings (Barrier, Release) |
| Substrate | Molded Pulp, Bagasse, PLA, Paper |
| Coating Uniformity | ±2% film thickness deviation |
| Production Capacity | Up to 30 cycles per minute (Customizable) |
| Control System | PLC + Touch Screen HMI with recipe storage |
| Power Supply | 380V / 50Hz (3 Phase) or Customizable |
4. Application

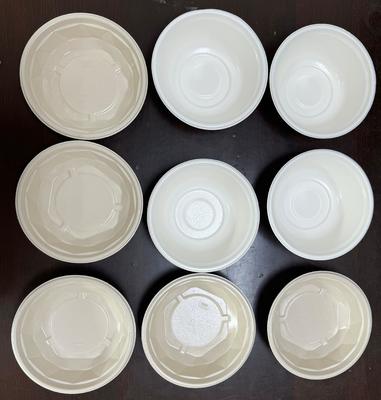

Ideal for applying moisture and oil barriers to plates, bowls, and food containers made from sustainable materials.
5. Customization
We offer fully customizable solutions. The spin coater chuck size, drying tunnel length, and automation level can be tailored to your specific plate dimensions and output targets.
6. Feature
-
High-precision servo-driven spin coater for unmatched film consistency.
-
Patented fixturing to minimize coating splatter and waste.
-
Energy-efficient multi-zone drying for optimal film formation.
-
Minimal coating material consumption due to precise application.
7. Support and Services
We provide installation & commissioning, operational training, and a 12-month warranty. 24/7 technical support is available.
8. Packing and Shipping
The machine is packed in a weather-proof wooden case for safe sea or air freight. All parts are clearly marked for easy reassembly.
9. FAQ
-
Q: What is the minimum film thickness achievable?
-
A: The system can reliably achieve thin films down to 5-10 microns, depending on the coating viscosity.
-
-
Q: Can it handle different plate sizes on the same line?
-
A: Yes, with quick-change tooling and stored PLC recipes, changeover between sizes is fast and simple.
-
