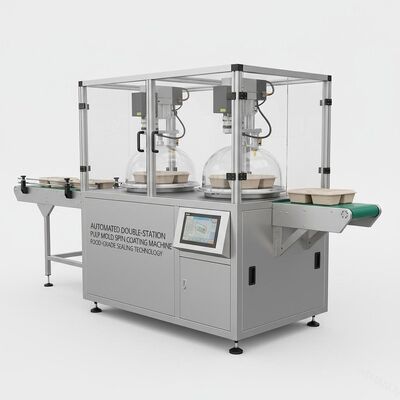

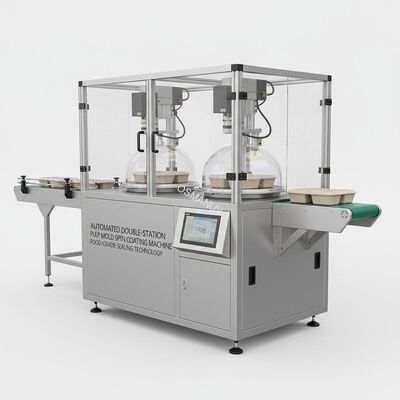

Automated Double-Station Pulp Mold Spin Coating Machine for Food-Grade Sealing of Eco-Friendly Packaging
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | OSMANUV |
| 証明: | CE |
| モデル番号: | OSM-XT-450TS |
| ドキュメント: | CE-Two station spin caoting...ne.pdf |
お支払配送条件:
| 最小注文数量: | 1Set |
|---|---|
| 価格: | negotiable |
| パッケージの詳細: | 木製パッケージ |
| 受渡し時間: | 30日 |
| 支払条件: | T/T |
| 供給の能力: | 交渉 |
|
詳細情報 |
|||
| 製品名: | ダブルステーションスピンマシン | 電圧: | 380V 50Hz |
|---|---|---|---|
| 力: | 960W | 重さ: | 純重量：150kg;総重量：160kg |
| 保証: | 1年 | 状態: | 新しい |
製品の説明
Automated Double-Station Pulp Mold Spin Coating Machine for Food-Grade Sealing of Eco-Friendly Packaging
Product Description
This automated double-station Spin Coating Machine is designed as a compact, ready-to-integrate solution for applying food-grade seal coatings to eco-friendly pulp packaging from materials like sugarcane bagasse and straw. It combines the productivity of two coating stations with a simple pick-and-place automation mechanism, minimizing manual labor and ensuring consistent quality. Designed for seamless integration into automated production lines, its layout and control interface are highly customizable to match your existing equipment.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | OSM-XT-450TS |
| Number of Stations | 2 (with Automatic Transfer) |
| Automation | Integrated Pick-and-Place Unit |
| Power Supply | 220V/50Hz or 380V/50Hz (Customizable) |
| Power Consumption | 5.5 kW (including automation) |
| Cycle Time | 10-15 seconds (per station) |
| Control System | PLC with Ethernet/IP Communication |
| Interface | Standard IO for line integration |
| Footprint | 3000mm x 2000mm |
Application
-
Fully automated coating of sugarcane bagasse food containers in-line with molding and pressing equipment.
-
Sealing straw pulp boxes and packaging for the consumer goods industry.
-
High-labor-cost environments where automation is a priority.
Feature
-
Integrated Automation: Includes a robotic arm or linear actuator for transferring products between stations and conveyor belts.
-
Compact Footprint: Engineered to deliver high productivity in a minimal floor space.
-
Line Integration Ready: Standard communication protocols (Ethernet/IP) for easy connectivity.
-
Safety Enclosure: Full safety interlocks and guarding to meet international machinery standards.
Customization
The system is designed for customization:
-
Conveyor Integration: Infeed and outfeed conveyor lengths and styles can be customized.
-
End-Effector Tooling: The automatic gripper is customized to handle your specific products gently and securely.
-
Control Panel Integration: Can be modified to match the look and feel of your other line equipment.
Support and Services
We offer full system integration support, including electrical interface documentation and remote assistance during the line commissioning phase.
Packing and Shipping
The machine is shipped as fully assembled as possible in modules to minimize on-site installation time. Clear markings and numbered cables are provided for easy connection.
FAQ
-
Q: What level of operator involvement is required?
-
A: The system is designed for minimal operator involvement. The primary roles are loading the infeed conveyor, monitoring operation, and refilling coating material.
-
-
Q: Can this machine connect to our existing PLC?
-
A: Yes, we can customize the communication interface to ensure seamless data exchange with your factory's main control system.
-
