詳細情報 |
|||
| 最大製品幅: | 1320mm | 重さ: | モデルに応じて、500 kg ～ 5000 kg の範囲 |
|---|---|---|---|
| 乾燥方法: | 熱風乾燥 / 真空乾燥 / 凍結乾燥 / マイクロ波乾燥 | 暖房エリア: | 9平方メートル |
| 切断精度: | ±0.2mm | 特徴: | 省エネと高効率 |
| 状態: | 新しい | 塗布速度: | 調整可能、0.1〜3メートル/分 |
製品の説明

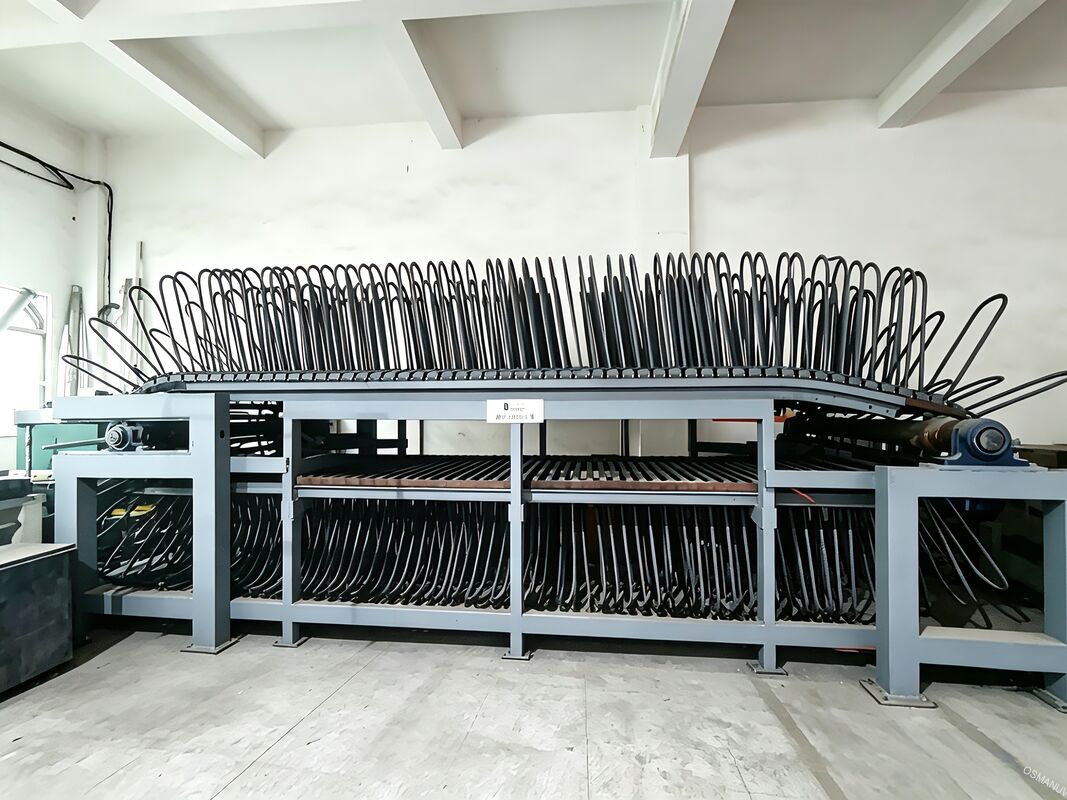

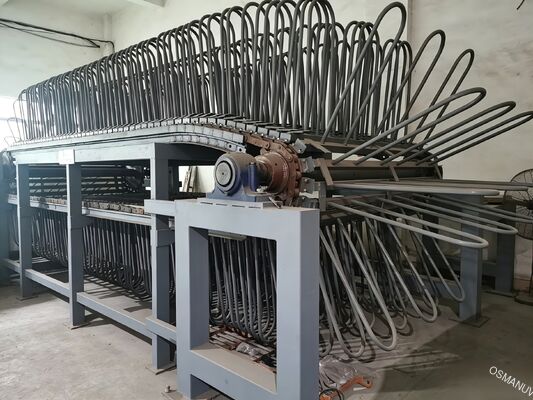

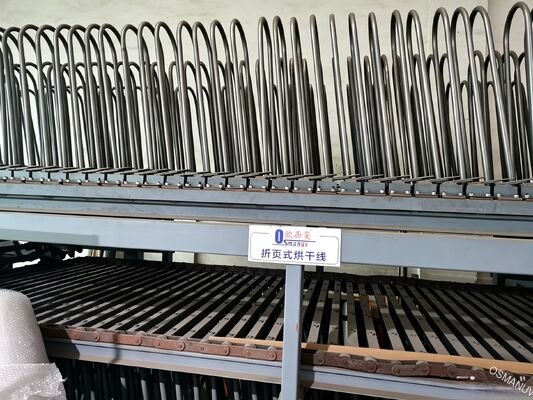

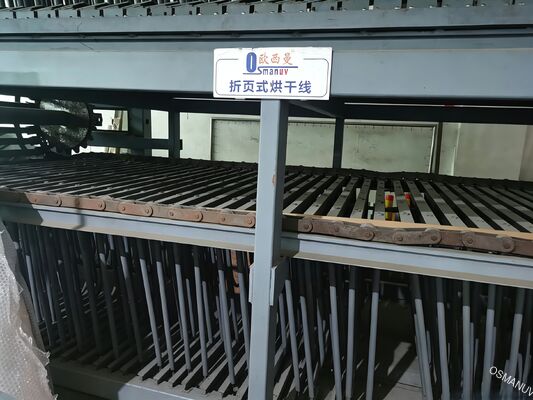

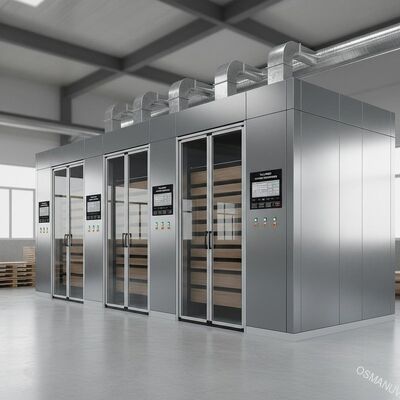

Multi-Zone Folding Door Dryer for Engineered Wood Boards – Tailored Drying Parameters
Composition of Production Line
-
Pre-dryer chamber (IR preheating)
-
Folding door drying tunnel (each door covers one zone)
-
Cross-belt circulation fans with VFD
-
Condensation extraction system (for high-moisture woods)
-
Post-dryer conditioning zone (humidity equalization)
-
Touchscreen recipe manager with 200 slots
-
Optional: In-line moisture meter and rejection gate
Product Description
The Multi-Zone Folding Door Dryer integrates a patented folding door architecture that allows operators to open any drying zone independently without shutting down the whole line. Each zone can be set to different temperature, humidity, and air velocity profiles – ideal for processing boards with varying initial moisture content (IMC) from 20% to 70%. The folding doors also serve as emergency exhaust in case of overheating. This dryer is tailored for high-volume furniture board manufacturers requiring Grade A surface quality.
Technical Parameters
| Parameter | Value (Standard) | Customizable Range |
|---|---|---|
| Number of folding doors | 6 | 4–16 (each door = 1.2 m length) |
| Door opening mechanism | Pneumatic piston | Electric linear actuator / manual |
| Board stack height | Single layer | Double layer (up to 60 mm total) |
| Drying temperature per zone | 60–170 °C (independently set) | 40–210 °C with cooling zone |
| Humidity control range | 10–80% RH (per zone) | 5–95% RH (with booster humidifier) |
| Production speed | 2–8 m/min | 0.5–12 m/min |
| Installed power | 68 kW | 25–200 kW |
| Heat recovery efficiency | 65% | up to 85% (with additional condenser) |
| Exhaust air treatment | Cyclone filter | Optional: wet scrubber / RTO |
Application
-
High-speed drying of UV-coated furniture boards
-
Multi-species mixed batch drying (e.g., poplar + birch together)
-
Drying / curing of fire-retardant treated panels
-
Air drying replacement for solid wood furniture components
Customization
✅ Tailored drying parameters per zone – You define the temperature, humidity, airflow, and residence time for each folding door zone. We can also customize the physical dimensions (length, height, width), door material (heat-resistant glass window option), and integration with existing factory conveyors. Retrofit kits available for old dryers.
Feature
-
Zone-independent folding doors – isolate any section for repair or cleaning while production continues
-
Adaptive drying logic – uses AI-based moisture prediction to adjust parameters in real time
-
Low-noise design (≤75 dBA) – optional acoustic enclosure
-
Self-cleaning mesh filters – reduce manual labor
-
Data export – CSV / MQTT / OPC UA for Industry 4.0
Support and Services
-
24-month extended warranty (optional purchase)
-
Free process optimization consultation (3 months after start-up)
-
Spare parts warehouse in USA, Germany, and China – 48h delivery
-
Virtual reality (VR) training for operators
-
Performance guarantee – achieve target final moisture or money back
Packing and Shipping
-
Packing: Folding doors individually wrapped in anti-static foam + steel frames; sensitive electronics in ESD-safe vacuum bags
-
Shipping: Partially assembled for easy on-site assembly (2 days with our engineers)
-
Transport: 2×40 ft HC containers or 1 flat rack for extra-long zones (12 m+)
FAQ
Q1: Can I dry very thin veneers (0.5 mm) without cracking?
A: Yes, custom gentle zone (low temp, high humidity) can be added as the first folding door section.
Q2: How many recipes can the controller store?
A: 200 standard, expandable to 1000 via USB or cloud.
Q3: Is the folding door dryer safe for flammable dust?
A: We offer ATEX-certified construction for explosive wood dust environments – just specify when ordering.
Q4: Can I see a live demo before customization?
A: Yes, we provide remote live test or send small sample boards to our lab – free of charge.
