Compact Infrared Drying Machine | For Energy-Efficient & Rapid Drying of Surface Coatings on Pulp Molding
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | OSMANUV |
| 証明: | ISO9001 |
| モデル番号: | OSM-IR-800 |
| ドキュメント: | 5 Meters IR Drying Machine.pdf |
お支払配送条件:
| 最小注文数量: | 1セット |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 木箱 |
| 受渡し時間: | 30~45日 |
| 支払条件: | T/T |
| 供給の能力: | 交渉 |
|
詳細情報 |
|||
| バンド名: | オスマヌフ | 自動グレード: | 自動 |
|---|---|---|---|
| 制御システム: | デジタル温度コントローラー | 電源: | 電気 |
| コンベアベルト: | テフロンメッシュベルト | 電源: | 380V |
| 暖房モード: | 紅外線暖房 | 電源: | 電気 |
| ハイライト: | compact infrared drying machine,infrared drying machine for pulp molding,energy-efficient surface coating dryer |
||
製品の説明
Compact Infrared Drying Machine| For Energy-Efficient & Rapid Drying of Surface Coatings on Pulp Molding
1. Composition of Production Line

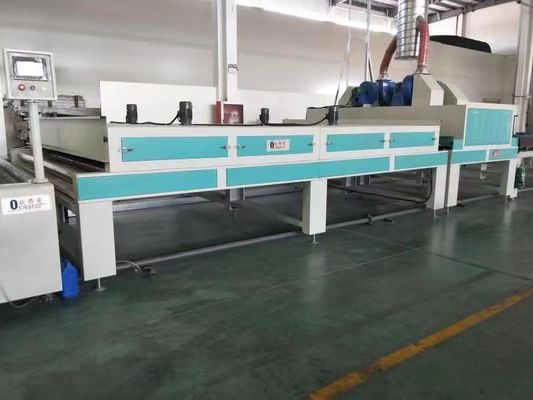

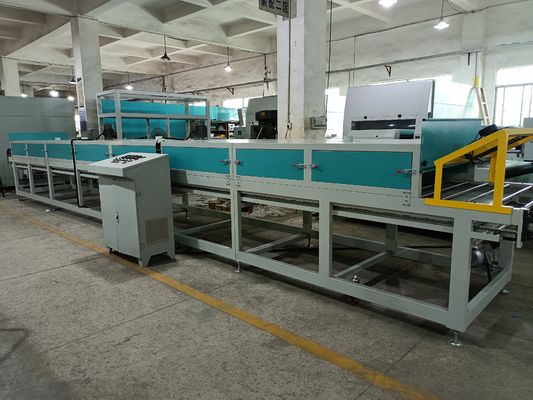

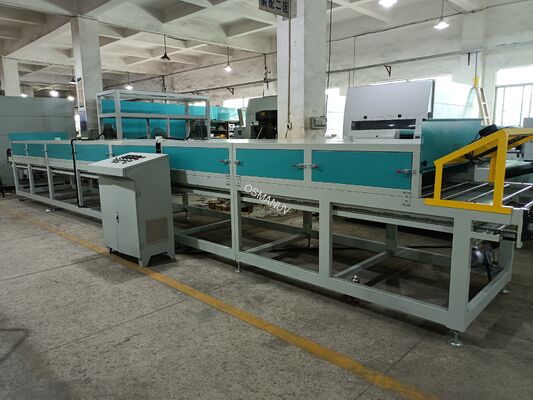

This streamlined system integrates into existing lines with minimal footprint. It consists of a compact infrared drying chamber with efficient emitters, a variable speed conveyor, a regulated exhaust system, and a user-friendly control panel. It's designed as a plug-and-play module for coating lines.
2. Product Description
This compact infrared dryer is engineered for space-conscious production environments that require efficient drying of water-based or solvent-based surface coatings on molded pulp products. It delivers fast, targeted heat to accelerate curing, reduce energy consumption, and is ideal for medium-scale production or as a supplemental drying unit.
3. Technical Parameters
| Parameter Category | Specification |
|---|---|
| Model | IR-COMPACT-1300 |

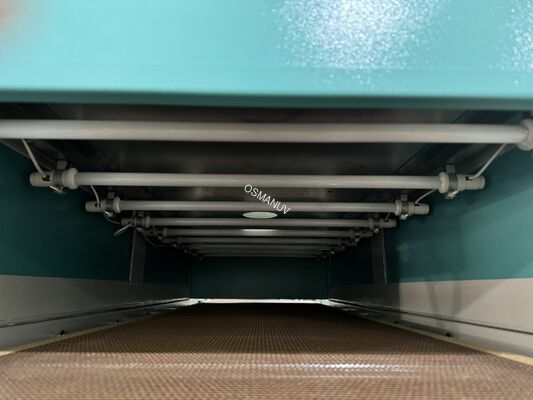

| Heating Method | Medium-wave infrared panels (high-efficiency type) |
| Temperature Range | Ambient - 160°C |
| Effective Working Width | 1300 mm [Customizable] |
| Chamber Length | 4 meters [Customizable from 2m to 8m] |

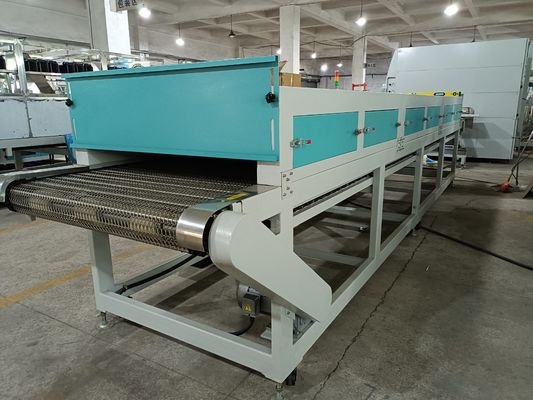

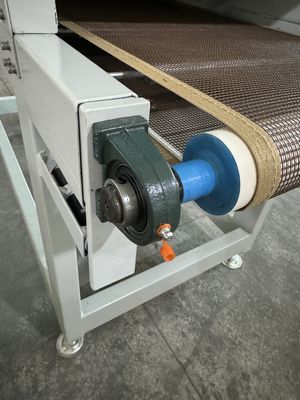

| Conveyor Type | Single-tier mesh belt |
| Conveyor Speed | 0.3 - 5 m/min (VFD Controlled) |
| Power Supply | 380V / 50Hz / 3Phase (or as required) |
| Total Installed Power | Approx. 45 - 75 kW [Customizable] |
| Control System | Digital PID controller with touch interface |
4. Application
Perfect for drying coatings on: Molded pulp food service ware, Paperboard packaging, Trays and cartons, and other medium-sized coated pulp products.
5. Customization
This model offers practical customization to fit your needs, including machine width and length, specific infrared emitter configurations for optimal heat profile, and conveyor belt material selection.
6. Features & Advantages
-
Space-Saving Design: Compact footprint allows easy integration into existing production lines.
-
Energy-Efficient Operation: High-efficiency emitters and focused heating reduce energy waste.
-
Rapid Process Time: Infrared direct heating significantly shortens drying/curing cycles.
-
Lower Operational Cost: Reduced energy use and minimal maintenance lower overall cost of ownership.
-
Easy to Operate: Simple controls enable quick setup and adjustment.
7. Support and Services
-
Remote installation guidance and commissioning support.
-
Operational training provided via manual and video.
-
One-year parts warranty and ongoing technical support.
8. Packing and Shipping
The unit is partially disassembled and securely packed in robust wooden crates suitable for export. Standard shipping terms apply. Lead time is 8-10 weeks.
9. FAQ
-
Q: How does this compact model save energy compared to traditional ovens?
-
A: It heats the product and coating directly, not the surrounding air, leading to faster heat transfer and less energy loss. The power output can also be customized to match your exact needs.
-
-
Q: Can it handle both water-based and solvent-based coatings?
-
A: Yes. The temperature and dwell time are easily adjusted. For solvents, ensuring adequate exhaust ventilation is key.
-
-
Q: Is it suitable for a factory with limited floor space?
-
A: Absolutely. Its compact and linear design is a primary advantage for space-constrained environments. The length can be customized to balance space and throughput.
-
