詳細情報 |
|||
| 摂食速度: | 5～20m/分 | 総電力: | 21.5kw |
|---|---|---|---|
| 乾燥タイプ: | IR乾燥 | 色: | あなたが決めることができます |
| 機械試験報告書: | 提供された | 機械名: | 重量パテ機械 |
| 紙の厚さ: | 80-600gsm | 梱包材: | 木材、プラスチック、金属、紙、ガラス |
| ハイライト: | automatic knife coating line for XPS,durable roller coating equipment for foamed ceramic,high-speed coating machine for large-scale production |
||
製品の説明

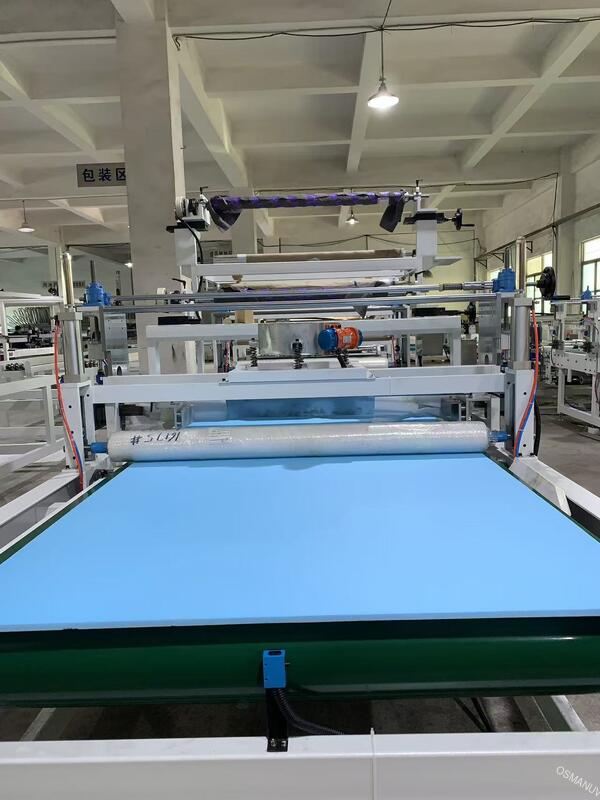

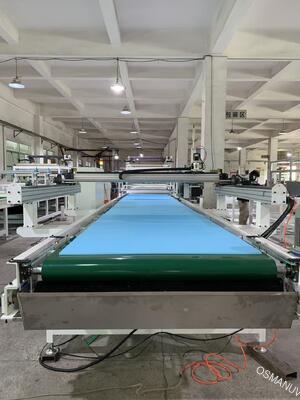

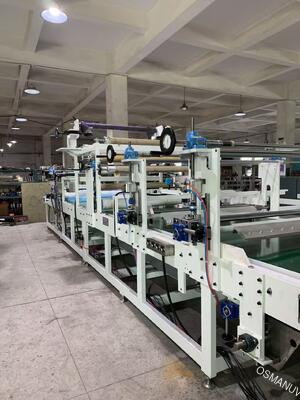

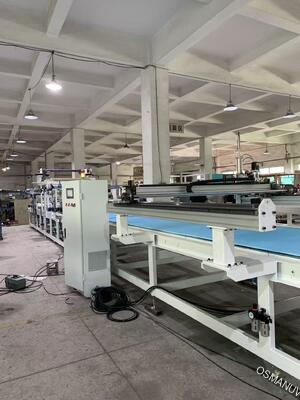

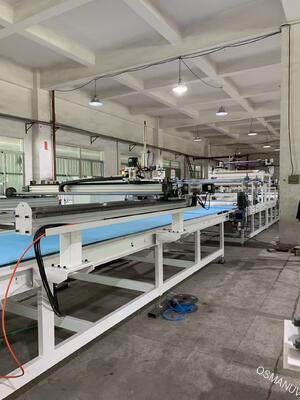

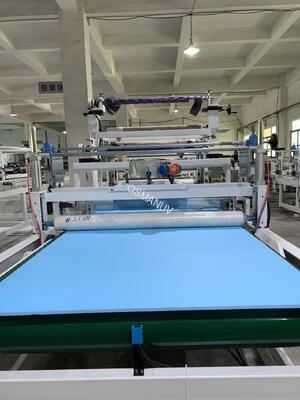

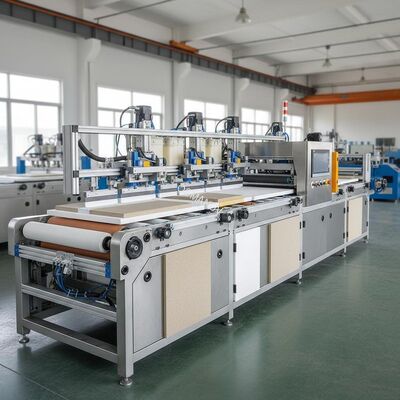

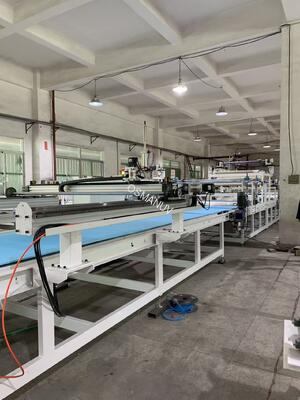

High-Speed & Durable Automatic Knife Coating Line for XPS & Foamed Ceramic Boards - Designed for Continuous Large-Scale Production
Product Description:
This robust automatic knife coating line is engineered for high-volume, uninterrupted production of coated XPS (extruded polystyrene) and foamed ceramic boards. It focuses on durability, consistent coating quality, and maximum uptime, making it ideal for standard-sized panel manufacturers with large order volumes.
Technical Parameters:
| Item | Parameter | Remarks |
|---|---|---|
| Coating Width | 600mm, 1200mm, Customizable up to 2400mm | Standard sizes available |
| Line Speed | 5-25 meters/minute | Adjustable frequency control |
| Coating Thickness | 0.5mm - 3.0mm | Precision adjustable knife head |
| Drying/Curing | Multi-zone hot air circulation oven | Temperature range: RT-120°C, Customizable |
| Total Power | Approx. 80-200 kW | Depends on configuration |
| Control System | PLC with HMI touch screen | Basic automation |
| Accuracy | Coating thickness tolerance ±0.1mm |
Composition of Production Line:
Automatic board feeder, Pre-cleaning/Ionizing unit, Precision knife coater, Multi-zone drying/curing oven, Cooling section, Automatic stacker/turnover unit, PLC control cabinet, Conveyor system.
Application:
Primarily for coating standard XPS insulation boards and foamed ceramic panels for building facades, roofs, and interior walls in large-scale projects.
Customization:
Line speed, coating width, oven length and heat source (electric, gas, steam), and conveyor type can be customized to suit specific factory layouts and output goals.
Feature:
Heavy-duty construction for 24/7 operation, high-speed capability, easy maintenance access, and energy-efficient drying zones ensure low cost per unit produced.
Support and Services:
Installation supervision, operator training, 12-month warranty, remote technical support, and spare parts supply.
Packing and Shipping:
Modular disassembly, wrapped in plastic film and packed in wooden crates for sea freight. FOB or CIF terms available.
FAQ:
Q: What is the lead time?
A: Typically 30-45 days after order confirmation for standard models.
Q: Can it handle different board thicknesses?
A: Yes, conveyor height and coater gap are easily adjustable.
Q: Is training provided?
A: Yes, comprehensive on-site training is included.
