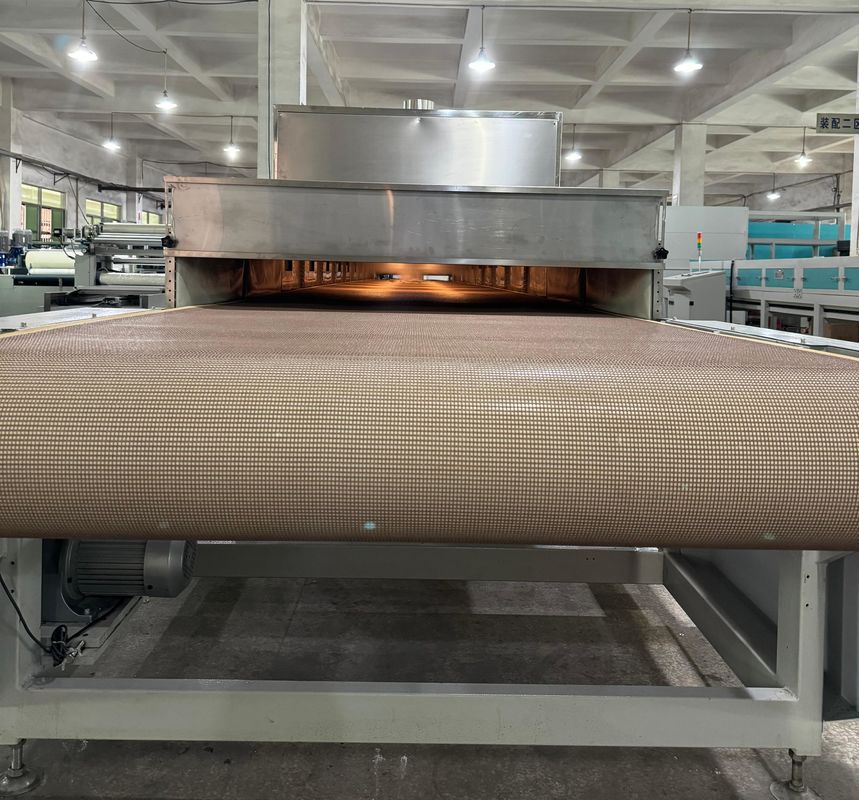

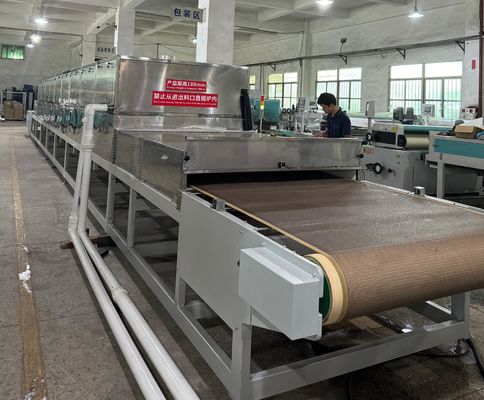

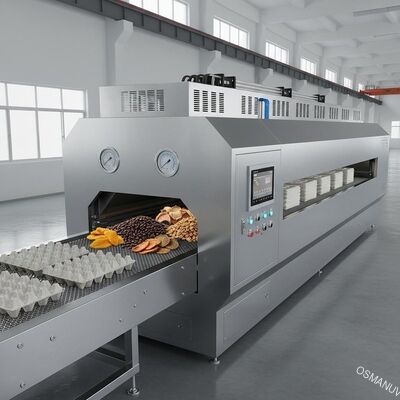

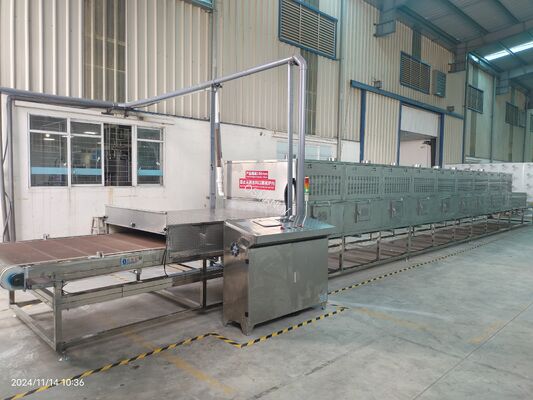

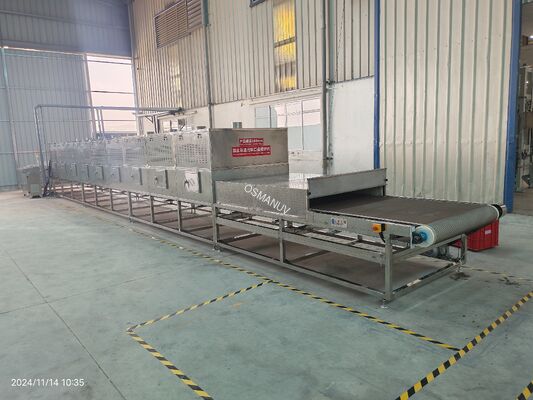

Industrial Microwave Drying Tunnel for Pulp Molding & Bulk Foods - Continuous Conveyor System
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | OSMANUV |
| 証明: | ISO9001 |
| モデル番号: | OSM-WBHG-1320T |
| ドキュメント: | microwave drying equipment.pdf |
お支払配送条件:
| 最小注文数量: | 1セット |
|---|---|
| 価格: | negotiable |
| パッケージの詳細: | 木箱 |
| 受渡し時間: | 30~45日 |
| 支払条件: | T/T |
| 供給の能力: | 交渉 |
|
詳細情報 |
|||
| サイズ: | 顧客の要求によって | 外観: | コンボイヤーベルト |
|---|---|---|---|
| 自動グレード: | 自動 | 力: | 30-50KW |
| プレートタイプ: | グラビアプレート | 状態: | 新しい |
| マグネトロンの冷却方法: | 水冷 | 寸法: | 容量や用途に合わせてカスタマイズ可能 |
| ハイライト: | industrial microwave drying tunnel,microwave drying for pulp molding,continuous conveyor drying system |
||
製品の説明
Industrial Microwave Drying Tunnel for Pulp Molding & Bulk Foods - Continuous Conveyor System
Composition of production line
This complete system includes an infeed conveyor belt, a microwave generator cabinet with multi-magnetron configuration, a resonant cavity drying tunnel, a hot air exhaust and moisture removal system, a discharge conveyor, and a centralized PLC control panel.
Product Description
This industrial microwave drying tunnel is engineered for continuous, high-volume drying of pulp molded products (like trays and packaging), sliced fruits, and bulk Chinese herbs. By using microwave energy to directly interact with water molecules inside the product, it significantly reduces drying time, improves product quality, and ensures uniform drying throughout the material, leading to higher throughput.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | MWT-IC Series |
| Drying Method | Microwave with Conveyorized Tunnel |
| Microwave Frequency | 2450MHz ± 50MHz |
| Power Output | 30kW, 60kW, 100kW (Customizable) |
| Conveyor Belt Width | 500mm, 800mm, 1000mm (Customizable) |
| Control System | PLC + Touch Screen HMI |
| Power Supply | 380V / 50Hz / 3 Phase |
| Overall Dimensions | Customizable based on power and capacity |
Application
-

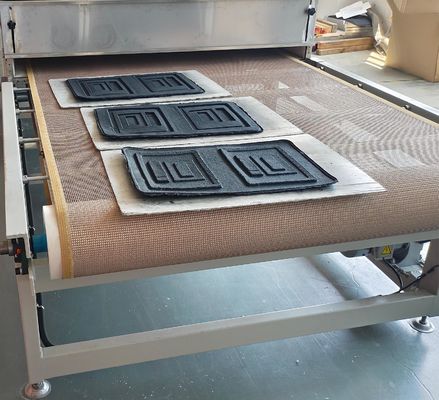

Pulp Molding: Fast drying of molded trays, packaging, and tableware.
-
Fruits: Drying slices of apple, mango, banana, and berries.
-
Chinese Herbs: Efficient bulk drying of roots, leaves, and herbs.
Customization
This system is highly customizable. We can adjust the tunnel length, power configuration, conveyor belt material (e.g., mesh, PTFE), and temperature profile to create a perfect drying curve for your specific product and output requirements.
Feature
-
Rapid and Uniform Drying: Microwaves penetrate the product, heating it from the inside out, preventing case-hardening.
-
High Energy Efficiency: Direct energy transfer to water molecules reduces overall energy consumption.
-
Continuous Operation: Designed for 24/7 integration into production lines.
-
Improved Product Quality: Preserves color, active ingredients (in herbs), and structural integrity.
-
Precise Control: PLC system allows for precise control over power and conveyor speed.
Support and Services
We provide comprehensive support including installation supervision, operator training, a 12-month warranty, and lifelong technical support with readily available spare parts.
Packing and shipping
The machine is disassembled into modules. All components are securely packed in weather-proof wooden cases suitable for sea shipping.
FAQ
-
Q: How does microwave drying compare to traditional methods for herbs?
-
A: It's much faster and better at preserving active ingredients and color because of the lower temperature and shorter exposure time.
-
-
Q: Can this machine handle different products on the same line?
-
A: Yes, the PLC can store multiple recipes. By customizing the settings, you can easily switch between different products.
-
-
Q: Is the drying process safe?
-
A: Absolutely. The system is fully sealed with multiple safety interlocks to prevent any microwave leakage, meeting international safety standards.
-
