詳細情報 |
|||
| コーティングタイプ: | 二重ローラー | 生産サイクル: | 45日 |
|---|---|---|---|
| 速度を伝える: | 5-20m/min | 特徴: | 効率的 |
| 膜厚範囲: | 1-200ミクロン | コーティング速度: | 調整可能、1～15メートル/分 |
| 搬送ローラー: | 電力: 1.5KW | 乾燥システム: | 紫外線乾燥 |
| ハイライト: | roller coating line for decorative finishes,multi-stage roller coating equipment,primer and topcoat roller coater |
||
製品の説明

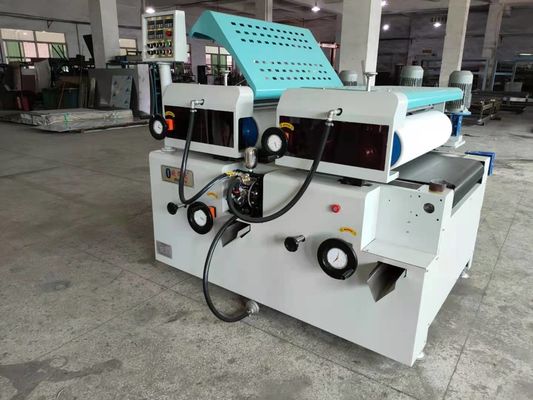

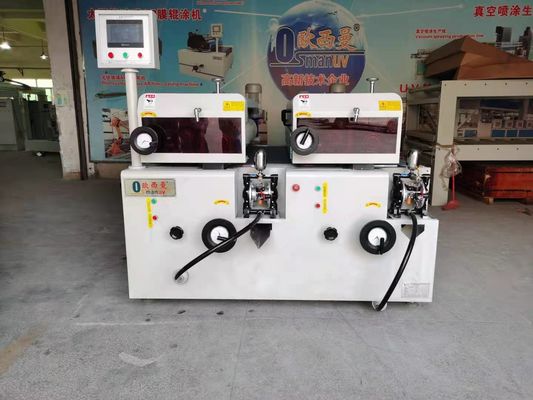

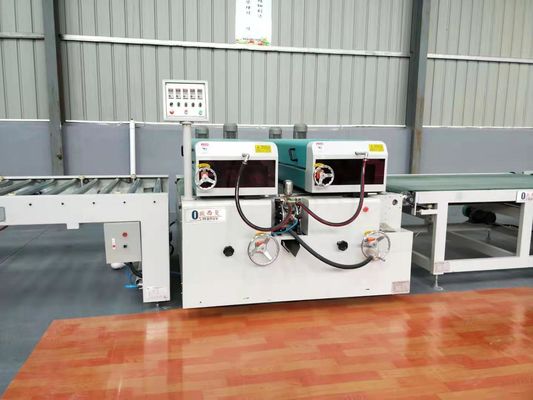

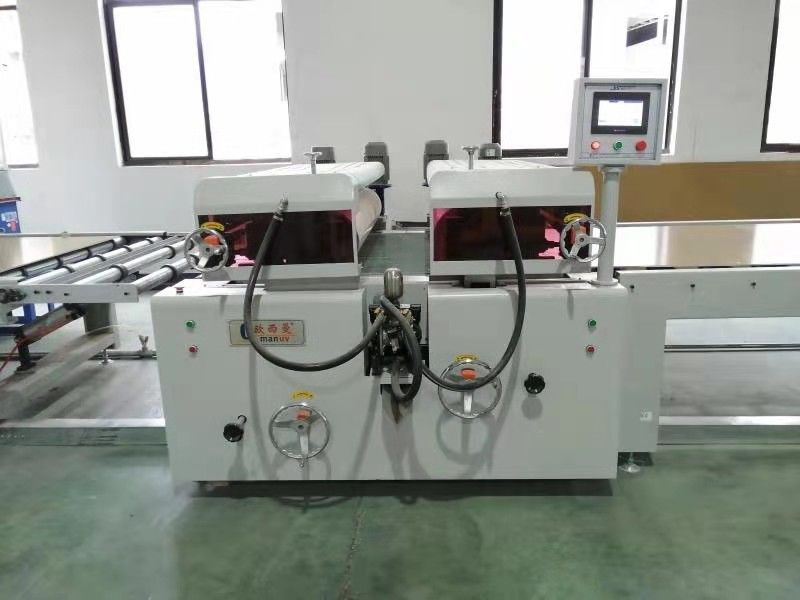

Multi-Stage Roller Coating Line for Decorative Finishes - Primer & Topcoat Application

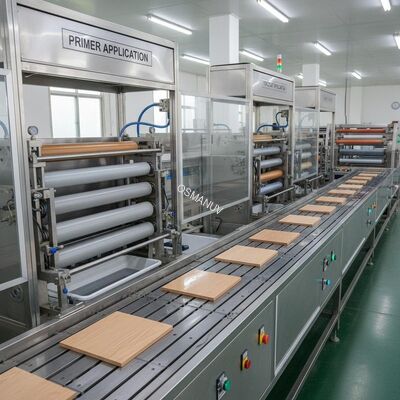

Composition of production line
This advanced line features multiple, independently controlled roller coating stations, inter-stage UV curing or IR drying modules, a precision substrate guidance system, and a central industrial PC with recipe management for complex processes.
Product Description
This multi-stage roller coating line is designed for applying multiple, perfectly registered coating layers in a single pass. It is perfect for creating high-value decorative and functional finishes on metal and PVC, such as applying a base coat, a printed pattern, and a clear protective layer with unmatched precision.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | RCM-ML Series |
| Number of Coating Stations | 2, 3, or 4 (Customizable) |
| Coating Width | Customizable up to 2500mm |
| Registration Accuracy | ± 0.8 mm between layers |
| Curing Options | UV Lamp Arrays or IR Tunnels per station (Customizable) |
| Control System | Industrial PC with SPC Data Logging |
| Line Speed | 3 - 40 meters/min |
| Coating Technology | Precision Roll Coating or Roller Curtain |
Application
-
Decorative wood-grain and pattern finishes on metal and PVC
-
Multi-layer protective coatings for automotive and appliance panels
-
High-gloss and matte topcoats
Customization
This system is highly customizable for complex processes. We can customize the number and sequence of coating and curing stations, integrate specific registration systems, and tailor the software for your unique multi-layer recipe.
Feature
-
Multi-Layer Capability: Applies multiple layers in a single pass with high registration accuracy.
-
Process Flexibility: Each station can be configured for different coating types and curing methods.
-
Superior Finish Quality: Eliminates defects for a flawless, high-end surface.
-
Recipe Management: Save and recall parameters for different products and layer structures.
-
Data Traceability: Logs process parameters for each batch for full quality control.
Support and Services
We offer extensive process development support, on-site calibration, and validation documentation for quality assurance.
Packing and shipping
Key precision components like coating heads are shipped in custom shock-absorbing crates. The entire system is clearly marked for reassembly.
FAQ
-
Q: How do you ensure alignment between different coating layers?
-
A: We use a customized edge guiding or vision-based registration system that makes micro-adjustments to ensure layer-to-layer accuracy.
-
-
Q: Can we switch between UV and solvent-based coatings on the same line?
-
A: Absolutely. The line can be customized with a combination of UV curing stations and thermal drying tunnels to handle hybrid chemistry processes.
-
-
Q: Is this line suitable for both flat and slightly textured sheets?
-
A: Yes, within limits. The roller coating head can be customized with different roller hardness to accommodate slight texture while maintaining film uniformity.
-
