詳細情報 |
|||
| 電圧: | 380V/50Hz | 寸法(長さ*幅*高さ): | カスタマイズされたサイズ、40000 * 2950 * 2300MM、85200 * 4600 * 2800mm、71100 * 2950 * 2300mm |
|---|---|---|---|
| コーティング幅: | 620mm、920mm コーティング、1320mm | 力: | 95KW、286.5KW、157kW、 |
| コーティング速度: | 調整可能、1-15メートル/分 | 保証: | 1年 |
| 自動グレード: | 自動、半自動 | 状態: | 新しい |
| ハイライト: | automated flat panel spray coating machine,high gloss decorative board finishing line,spray coating machine for panel finishing |
||
製品の説明

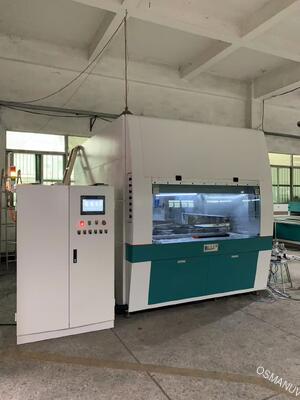

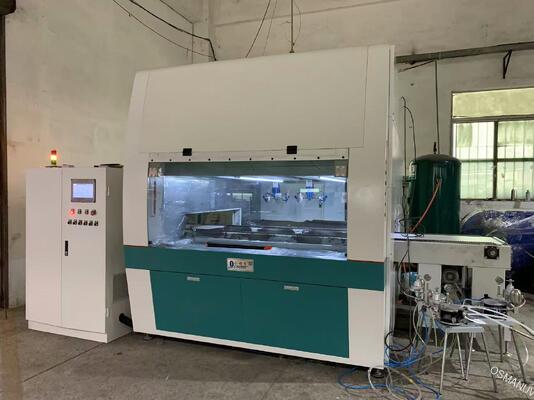

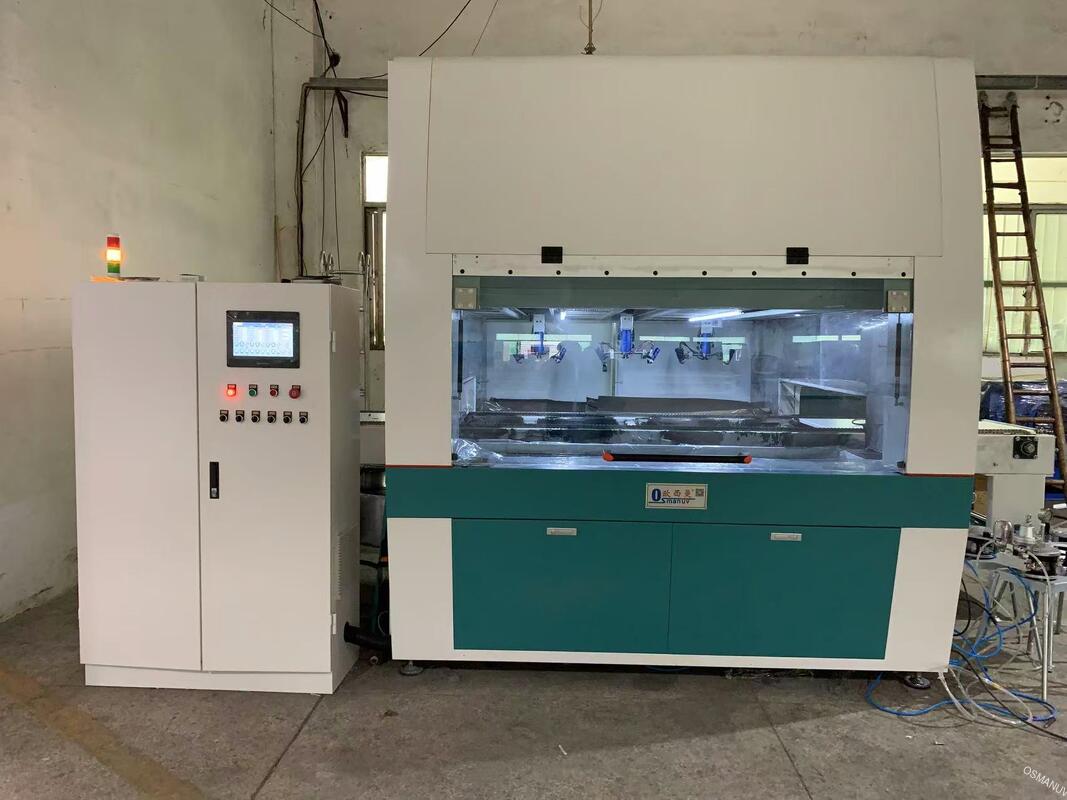

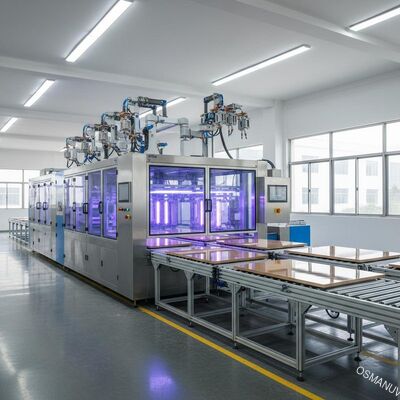

Automated Flat Panel Spraying Coating Line for High Gloss Decorative Board Finishing
Product Description:
This fully automated flat panel spraying line is engineered for achieving a flawless, high-gloss finish on decorative boards and panels. It integrates automatic spraying, leveling, and drying processes into one continuous, efficient line. The system ensures a perfectly uniform coating with 99.5% consistency, significantly reducing material waste and manual labor while maximizing output for large-scale production.
Technical Parameters:
| No. | Parameter Name | Specification |
|---|---|---|
| 1 | Product Name | Automated Flat Panel Spraying Line |
| 2 | Max. Workpiece Width | 1320 mm (Customizable) |
| 3 | Conveyor Speed | 1-15 m/min (Stepless Control) |

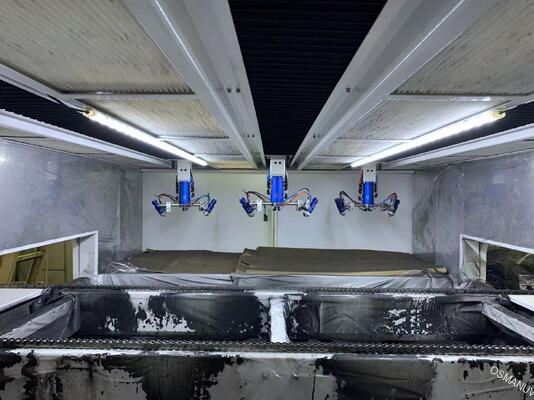

| 4 | Spraying Method | Automatic Air-Assisted/ Airless Spray Guns |
| 5 | Number of Spray Guns | 4Units (Customizable) |
| 6 | Drying Section | IR Drying or Hot Air Curing Tunnel |

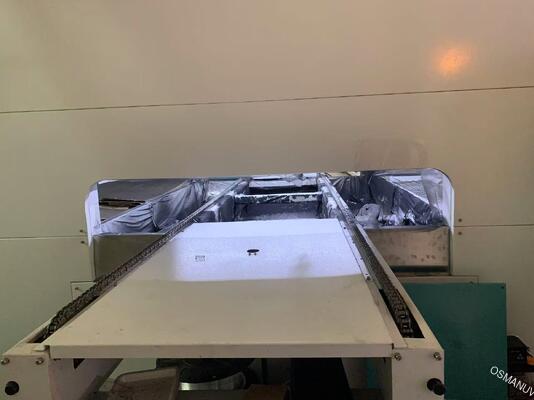

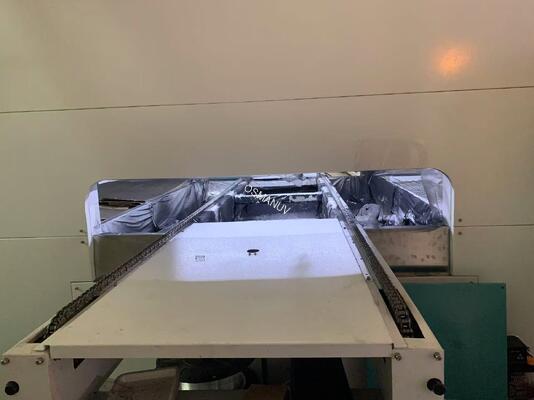

| 7 | Transfer System | Precision Chain or Belt Conveyor |
| 8 | Control System | PLC + Touch Screen HMI |
| 9 | Finishing Uniformity | ≥ 99.5% |
Application:
Ideal for applying high-gloss, satin, or matte finishes to MDF panels, melamine boards, laminated decorative panels, and furniture components.
Customization:
This is a fully customizable non-standard line. We can tailor the conveyor width, number and type of spray guns, drying method, and line length to match your specific panel size, production volume, and finish requirements.
Feature:
-
Automated spraying ensures a superior, consistent finish with minimal overspray.
-
Stepless speed control allows precise adjustment for optimal coating thickness.
-
Integrated drying section for a continuous production flow.
-
User-friendly PLC control for easy operation and recipe management.
Support and Services:
-
One-year warranty on the entire line.
-
On-site installation, commissioning, and comprehensive operator training.
-
Lifetime technical support and remote diagnostics.
Packing and Shipping:
The line is disassembled into modules, securely packed in weather-proof wooden crates for sea freight. Delivery lead time is 70-90 days based on configuration. FOB terms.
FAQ:
-
Q: What is the typical paint utilization rate of this automated line?
-
A: With properly calibrated automatic guns, the system can achieve a paint utilization rate of over 90%, significantly higher than manual spraying, reducing material cost and VOC emissions.
-
-
Q: Can the line handle different panel sizes without major adjustments?
-
A: Yes, the conveyor system and gun triggering can be customized with programmable logic to automatically adjust for different panel lengths, allowing for flexible batch production.
-
