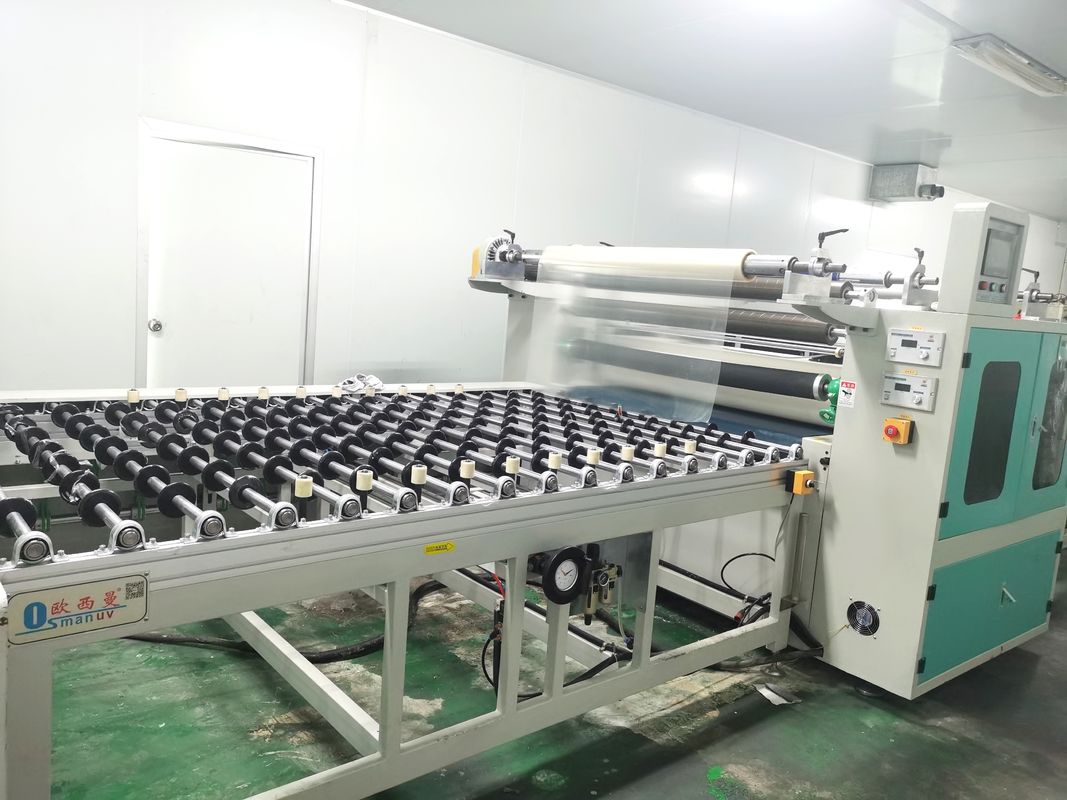

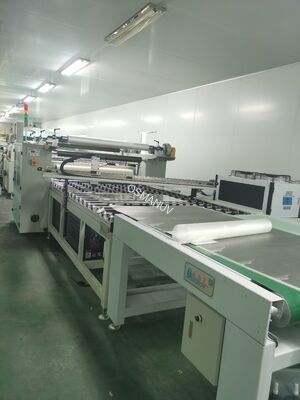

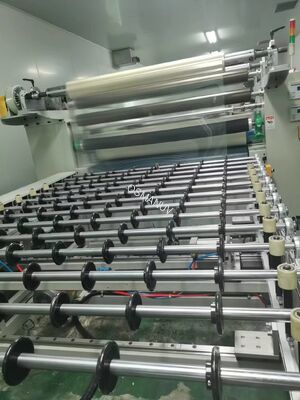

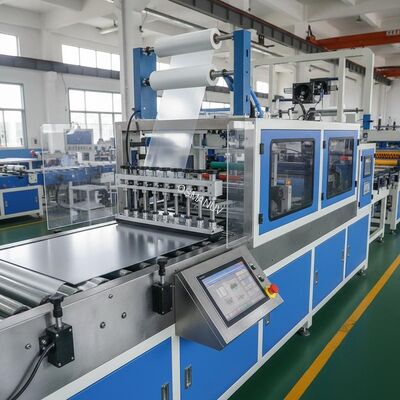

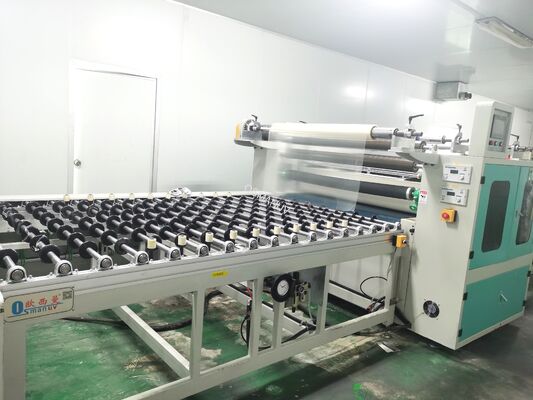

High-Efficiency Film Laminating Machine for Metal Sheet | Customizable Protective Film Coating Line
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | OSMANUV |
| 証明: | ISO9001 |
| モデル番号: | OSM-FMJ-1320Ⅰ |
| ドキュメント: | film Lamintaing.pdf |
お支払配送条件:
| 最小注文数量: | 1セット |
|---|---|
| 価格: | negotiable |
| パッケージの詳細: | 木製の箱 |
| 受渡し時間: | 30~45日 |
| 支払条件: | T/T |
| 供給の能力: | 交渉 |
|
詳細情報 |
|||
| 金型モデル: | Tダイス | 総電力: | 25のkw |
|---|---|---|---|
| プレッシャー: | 4.9～25MPa | 一生: | 10年以上 |
| 巻き戻しタイプ: | 自動 | 給餌方法: | 摩擦 |
| 最大幅: | 1050mm | 切断機能を持つ: | と |
製品の説明
High-Efficiency Film Laminating Machine for Metal Sheet | Customizable Protective Film Coating Line
Composition of Production Line
-
Automatic feeding system
-

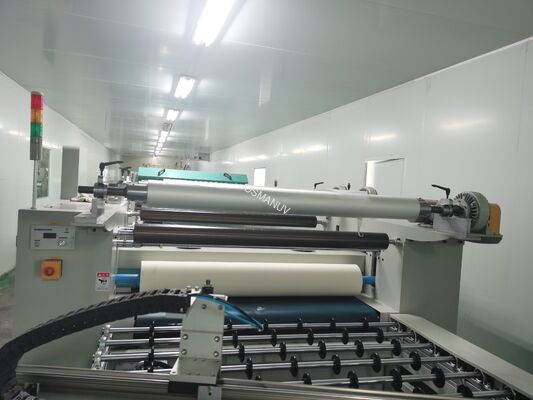

Precision laminating unit (roller type)
-
Tension control system
-
Protective film unwinding unit
-
Automatic cutting & stacking system
-
PLC touch screen control
Product Description
This metal sheet laminating machine is engineered for high-precision film coating on stainless steel, aluminum, and galvanized panels. It ensures a bubble-free, wrinkle-free finish while protecting surfaces from scratches during handling and transportation. The line is fully customizable based on sheet size, film material, and production capacity.
Technical Parameters
| Parameter | Specification |
|---|---|
| Max Sheet Width | 1300mm (customizable: 600–1600mm) |
| Max Sheet Thickness | 0.3–2.0mm |
| Laminating Speed | 5–25m/min (adjustable) |
| Film Material | PE, PET, PVC protective film |
| Control System | PLC + HMI Touch Screen |
| Power Supply | 380V, 50Hz, 3 Phase |
| Operator Requirement | 1–2 persons |
Application
Ideal for:
-
Metal sheets (stainless steel, aluminum, galvanized)
-
Pre-painted steel panels
-
Interior or exterior architectural panels
-
Appliance panel protection
Customization
-
Sheet size
-
Film material compatibility
-
Speed & power capacity
-
Add-on: Pre-cleaning station, static eliminator
Features
-
Non-contact film pressing to avoid surface scratches
-
High-speed lamination with edge-alignment control
-
Quick changeover mechanism for different film types
-
Optional hot/cold lamination
-
Fully customizable layout & capacity
Support and Services
-
24/7 online technical support
-
On-site installation & training
-
12-month warranty with lifetime maintenance service
-
Free upgrade consultation
Packing and Shipping
-
Fumigation-free wooden case packing
-
Shipped via sea/air freight
-
Lead time: 20–30 working days after order confirmation
-
Insurance and tracking provided
FAQ
Q1: Can this machine handle different sheet sizes?
Yes, the machine is customizable for various widths and thicknesses.
Q2: What if the protective film has different adhesive strength?
Our tension control system adapts to different film tack levels.
Q3: Do you offer overseas support?
Yes, we provide global service & online troubleshooting.
