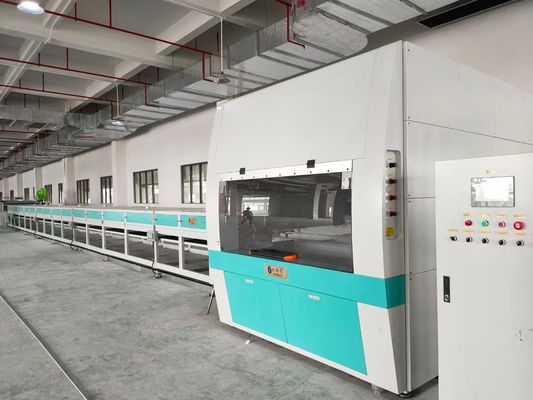

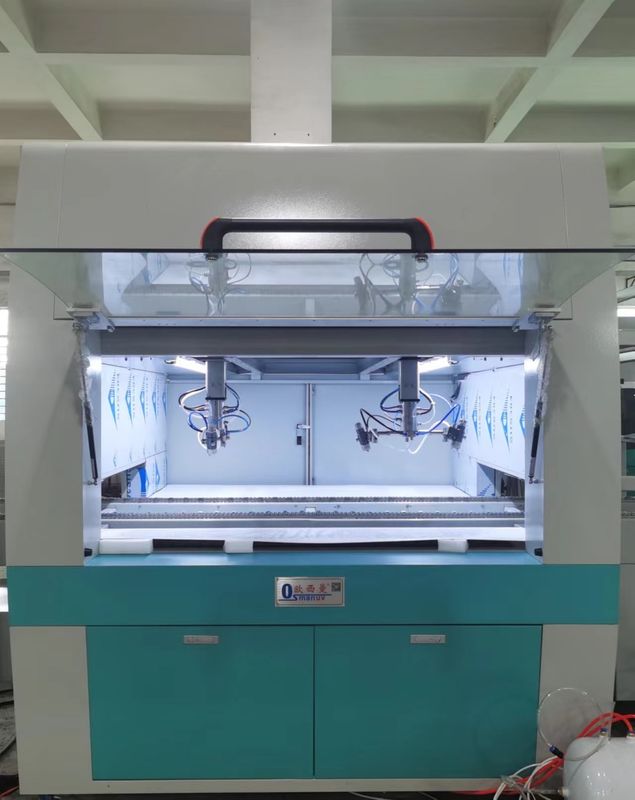

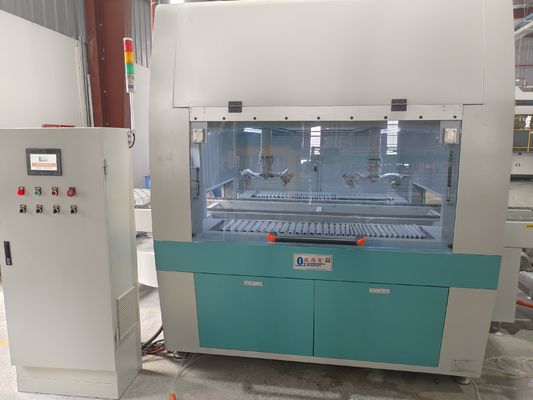

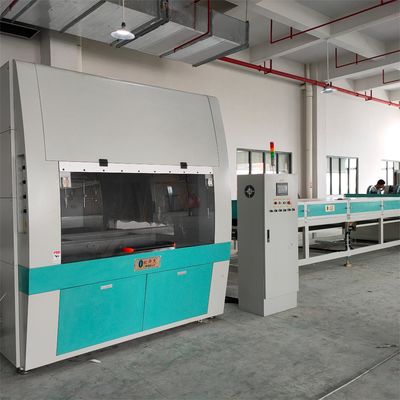

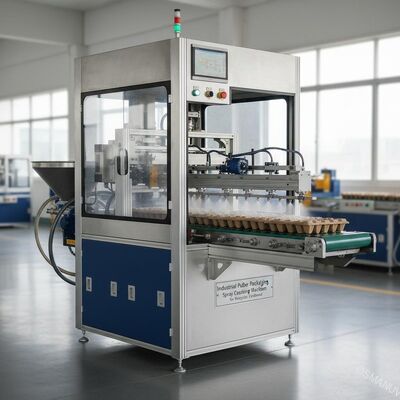

Industrial Pulp Fiber Packaging Spray Coating Machine with Precision Reciprocating Spray System for Recycled Cardboard
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | OSMANUV |
| 証明: | ISO9001 |
| モデル番号: | OSM-GX-PV-800/PT |
| ドキュメント: | automatic spray coating mac...ne.pdf |
お支払配送条件:
| 最小注文数量: | 1セット |
|---|---|
| 価格: | negotiable |
| パッケージの詳細: | 木製パッケージ |
| 受渡し時間: | 35日 |
| 支払条件: | T/T |
| 供給の能力: | 交渉 |
|
詳細情報 |
|||
| 製品名: | 自動スプレーコーティングマシン | コーティング幅: | 800mm |
|---|---|---|---|
| 力: | 11kw | 電圧: | 380V/50HZ、調整可能 |
| 自動グレード: | 自動、半自動、マニュアル、その他 | 状態: | 新しい |
| 保証: | 1年 | 厚さの処理: | 3-200mm |
製品の説明

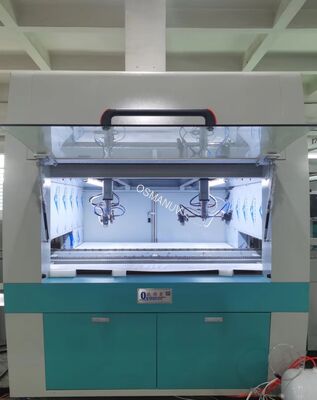

Industrial Pulp Fiber Packaging Spray Coating Machine with Precision Reciprocating Spray System for Recycled Cardboard
Product Description
This automated reciprocating spray coating machine is specifically designed for applying uniform functional and decorative coatings to industrial paper pulp packaging made from recycled cardboard and waste paper. The system features precision servo-driven spray guns with programmable motion paths to ensure consistent coverage on complex 3D shapes while minimizing material waste and optimizing production efficiency.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model |
OSM-GX-PV-800/PT |
| Spraying Axis | X-Y-Z 3-axis programmable |
| Max Product Size | 3500×3050×2500 mm (Customizable) |
| Spray Guns | 4 guns (Customizable) |
| Coating Capacity | 300-600 pcs/hour |
| Control System | PLC + Touch Screen HMI |
| Repeatability | ±0.5 mm |
Application
Automated coating of industrial protective packaging, edge protectors, corner pads, and cushioning products made from recycled paperboard and waste paper materials.
Customization
-
Customizable number of spray guns and nozzle types
-
Customizable working envelope dimensions
-
Customizable coating thickness and pattern parameters
Feature
-
Precise 3-axis programmable path control
-
High transfer efficiency coating technology
-
Quick changeover between different products
-
Integrated exhaust and filtration system
Support and Services
-
On-site installation and calibration
-
Spray parameter optimization service
-
Operator training program
-
Annual maintenance contracts available
Packing and Shipping
-
Heavy-duty wooden crate packaging
-
Shock-absorbent mounting for precision components
-
Weather-proof covering for sea shipment
FAQ
Q: What is the coating transfer efficiency?
A: The HVLP system achieves 75-85% transfer efficiency, significantly reducing material consumption compared to conventional spraying.
