詳細情報 |
|||
| 製品名: | カーテンコーティングライン | 寸法: | 6000 mm（L）×2200 mm（W）×1400 mm（H） |
|---|---|---|---|
| 床からのベルトの高さ: | 調整可能、850-900 mm | 加工可能な厚さ: | 3-80mm |
| 最小加工可能長: | 300mm | 電力: | 117kw |
| 塗料タンク容量: | 250kg | 床面積: | 114.8平方メートル |
| ハイライト: | UV finish coating machine for MDF,automated curtain coating machine,high-gloss panel furniture coater |
||
製品の説明

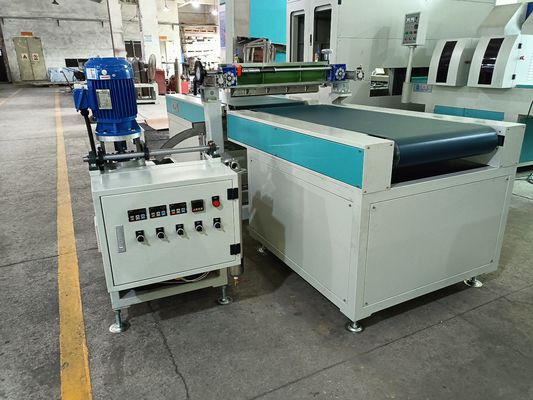

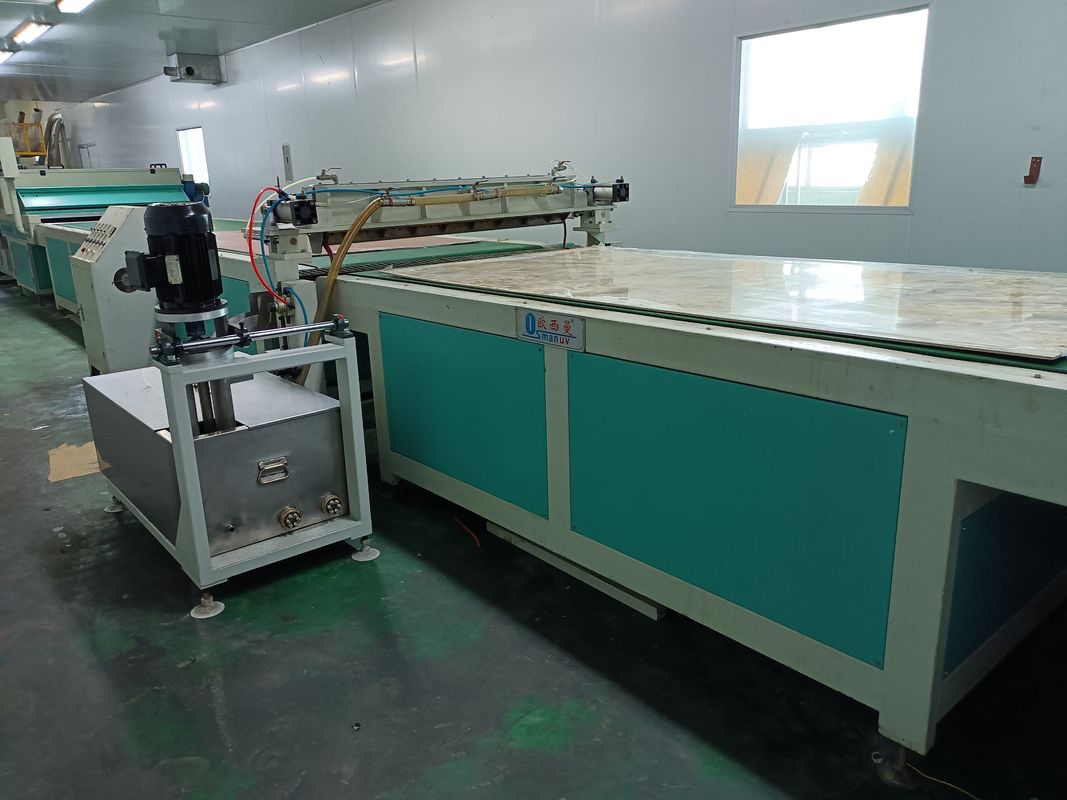

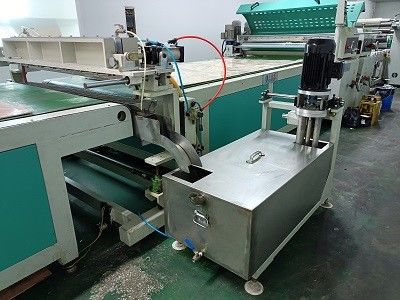

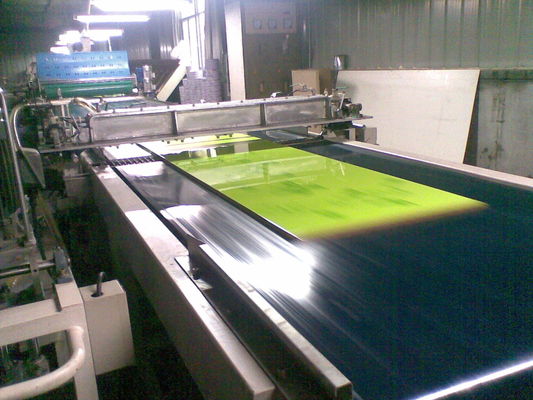

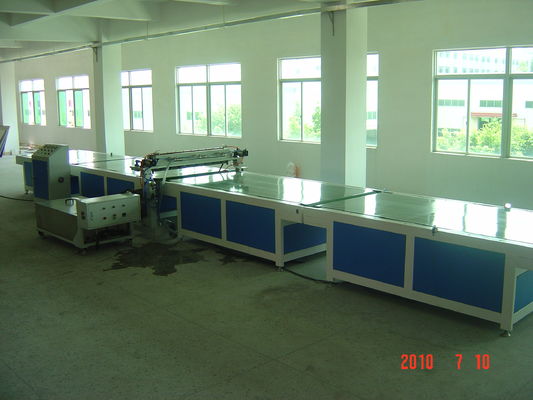

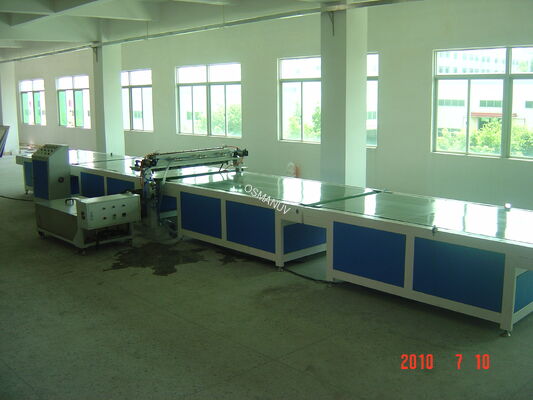

Automated High-Gloss Panel Furniture Curtain Coating Line for MDF Board
- Composition of Production Line:

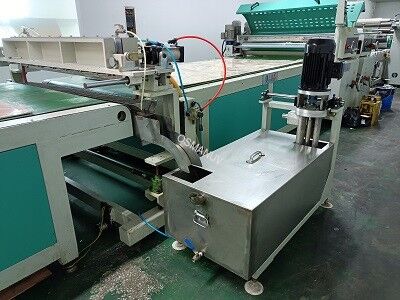

This integrated system comprises an automatic panel feeder, curtain coating applicator, UV curing device, and cooling section.
-
Product Description:
This high-speed curtain coating line is engineered for furniture manufacturers seeking a flawless, high-gloss finish on flat panel components like cabinet doors, table tops, and shelving. It applies a perfect, uniform curtain of UV coating onto the substrate, resulting in a durable, mirror-like surface with exceptional clarity and scratch resistance. Ideal for high-volume production of modern, high-gloss furniture.
-
Technical Parameters:
| Parameter Category | Details & Specifications |
|---|---|
| Model | OSM-LT-1320 |
| Suitable Substrate | MDF, Particle Board, Plywood, Pre-laminated Panels |
| Coating Method | Precision Curtain Coating |
| Max. Panel Width | 2800 mm (Customizable) |
| Max. Panel Thickness | 50 mm |
| Line Speed | 0-10 m/min |
| Coating Type | UV Coatings (Clear, Pigmented) |
| Curing Method | High-Power UV Curing Lamp |
Paint Consumption |
60～200 g/㎡ |
-
Application:
High-gloss cabinet doors, table tops, office furniture panels, and decorative wall panels.
-
Customization:
The line can be customized with different coating head widths, specific UV lamp power for optimal curing, and integration with pre- and post-processing equipment.
-
Feature:
-
Perfect High-Gloss Finish: Delivers a mirror-like, defect-free surface.
-
Extremely High Efficiency: Suitable for continuous, high-throughput production lines.
-
Minimal Coating Waste: Precise application reduces material consumption.
-
Instant Curing: UV curing allows for immediate handling and stacking.
-
-
Support and Services:
On-site installation supervision, comprehensive operator training on maintenance and operation, and readily available spare parts.
-
Packing and Shipping:
All modules are crated in heavy-duty, weatherproof wooden cases. Sensitive components like the coating head are packed separately with special cushioning.
-
FAQ:
Q: Why is curtain coating ideal for high-gloss finishes?
A: Curtain coating applies a continuous, uninterrupted film of coating that levels perfectly before curing, eliminating the orange peel effect or streaks common in spray methods, which is essential for achieving a perfect gloss.
