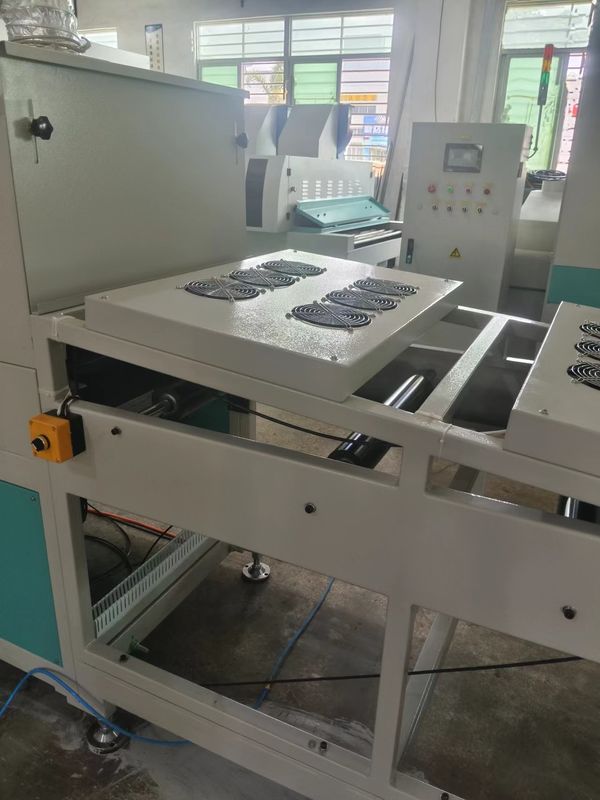

High-Volume Automatic Spray Coating Line for Wood Door Manufacturing - Precision Finish Solution
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | Osmanuv |
| 証明: | ISO9001 |
| モデル番号: | OSM-PT-1320 |
| ドキュメント: | automatic spray coating mac...ne.pdf |
お支払配送条件:
| 最小注文数量: | 1セット |
|---|---|
| 価格: | negotiable |
| パッケージの詳細: | 木製の箱 |
| 受渡し時間: | 45日 |
| 支払条件: | T/T |
| 供給の能力: | 交渉 |
|
詳細情報 |
|||
| 電気箱: | 独立した電気箱 | コーティング数量: | 10〜16g/sqm |
|---|---|---|---|
| 燃焼器: | オリジナルのリエロバーナー,2個セット | 特徴: | 効率的 |
| スリットスピード: | 50-350m/min | 材料: | 天然ゴム,PVC |
| 配達用の高さ: | 1100 mm | 乾燥した方法: | 紫外線ランプ |
| ハイライト: | automatic spray coating machine for wood doors,high-volume spray coating line,precision finish spray coating machine |
||
製品の説明

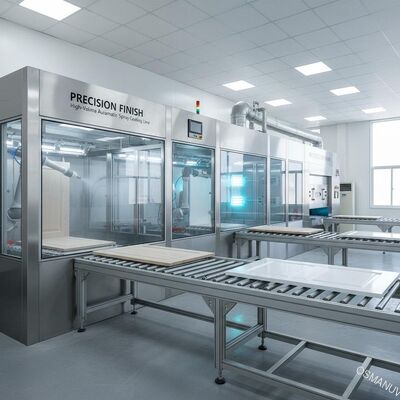

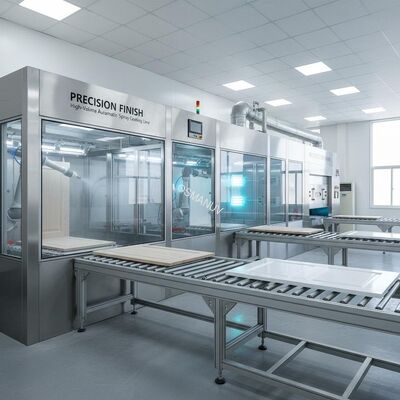

High-Volume Automatic Spray Coating Line for Wood Door Manufacturing - Precision Finish Solution
Keywords: wood door spray coating line, automatic painting system, furniture door finishing, customizable spray equipment

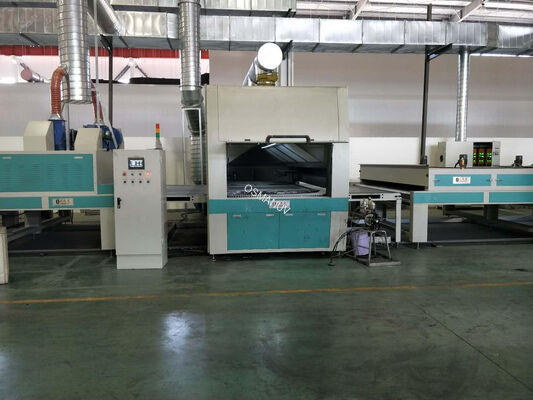

Composition of Production Line:
Automatic loading system, conveyor belt, pre-treatment cleaning station, robotic spray guns, UV curing tunnel, drying oven, quality inspection zone, unloading system.
Product Description:
This fully automatic spray coating line is designed for high-volume production of wood doors, ensuring uniform surface finishing with precise paint application and efficient curing.
Technical Parameters:
| Parameter | Specification |
|---|---|
| Max. Door Size | 1200mm x 2500mm (customizable) |
| Line Speed | 2-8 m/min (adjustable) |
| Spray Method | Electrostatic/Robotic (customizable) |
| Drying System | UV/IR Hybrid (customizable) |
| Power Supply | 380V/50Hz/3Phase (configurable) |
| Control System | Siemens PLC + Touchscreen HMI |
| Paint Usage Efficiency | >95% (with electrostatic) |
Application:
Surface coating for interior/exterior wood doors, cabinet doors, and architectural woodwork.
Customization:
Fully customizable for door dimensions, paint type, drying method, and automation level.
Feature:
-
Robotic path programming for complex designs
-
Paint recycling system reducing waste
-
Energy-efficient drying technology
-
Real-time thickness monitoring
Support and Services:
Installation supervision, operator training, 24/7 technical support, annual maintenance contracts.
Packing and Shipping:
Modular design for easy shipping, weather-proof packaging, FOB/CIF terms available.
FAQ:
Q: Can it handle different door styles?
A: Yes, the system is customizable for panel doors, flush doors, and carved designs.
