Gas-Fired Drying Tunnel for Wood Panel Coating Curing: High-Temperature Finishing Oven for MDF and Particle Board
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | OSMANUV |
| 証明: | ISO9001 |
| モデル番号: | OSM-TRQ-920 |
| ドキュメント: | Natural Gas Drying Machine.pdf |
お支払配送条件:
| 最小注文数量: | 1セット |
|---|---|
| 価格: | negotiable |
| パッケージの詳細: | 木製パッケージ |
| 受渡し時間: | 45日 |
| 支払条件: | T/T |
| 供給の能力: | 交渉 |
|
詳細情報 |
|||
| 製品名: | ガス乾燥機のライン | トランスミッションは広く制限されています: | 920mm |
|---|---|---|---|
| 生産ライン速度: | 1-20m/min | 電力: | 35.5kw |
| 機械のサイズ: | 90000mm*1650mm*2250mm | 生産サイクル: | 35〜45日 |
| ハイライト: | gas-fired wood panel drying tunnel,high-temperature MDF curing oven,industrial particle board finishing oven |
||
製品の説明

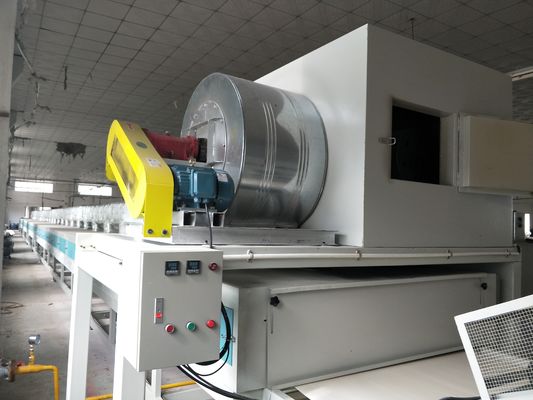

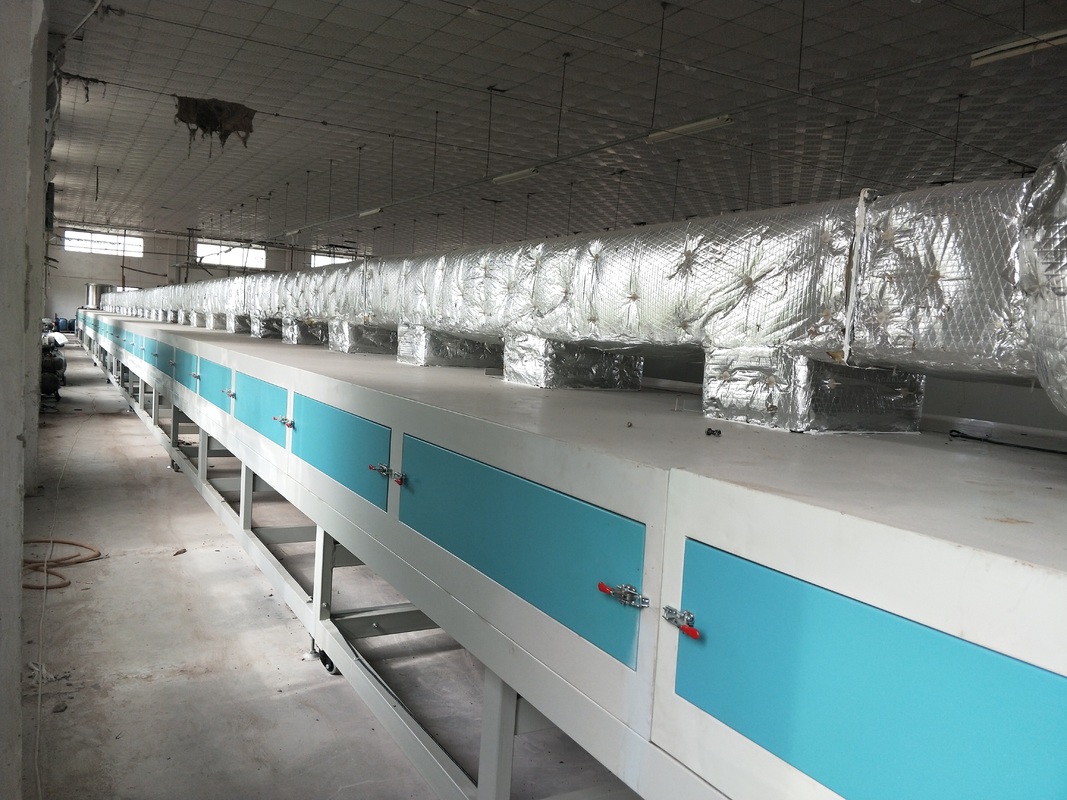

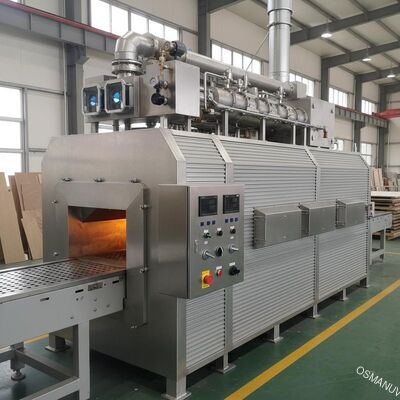

Gas-Fired Drying Tunnel for Wood Panel Coating Curing: High-Temperature Finishing Oven for MDF and Particle Board
-
Composition of Production Line:
This line features a powder-coated steel structure, chain or roller conveyor system, high-velocity heated air plenums, energy recovery system, automatic fire suppression system, and advanced emission control unit. -
Product Description:
This heavy-duty gas-fired drying tunnel is designed for the rapid curing of coatings on wood-based panels like MDF, particle board, and HDF. It provides the high temperatures and intense air movement required to quickly cross-link and harden UV, water-based, and solvent-based coatings, resulting in a durable, scratch-resistant finish. The direct-fired system offers maximum thermal efficiency for demanding factory environments. -
Technical Parameters:
| Parameter Category | Details & Specifications |
|---|---|
| Model | OSM-TRQ-920 |
| Suitable Product | MDF, Particle Board, HDF, Plywood Panels |

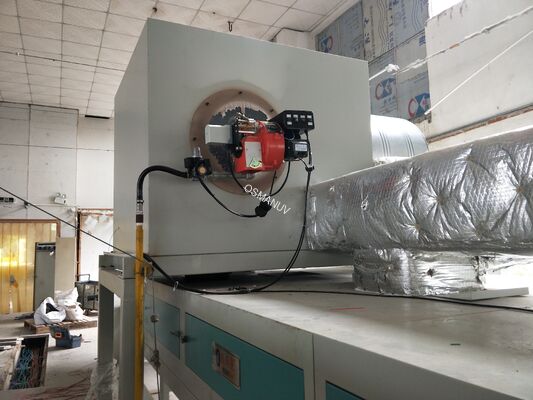

| Heat Source | Direct Gas-Fired Air Make-up System |
| Max. Operating Temp | 250°C |
| Conveyor Width | 2200 mm (Customizable) |
| Panel Thickness | 3mm - 50mm |
| Energy Recovery | Optional Air-to-Air Heat Exchanger |
| Control System | PID temperature control with data logging |
-
Application:
Curing painted or coated furniture panels, cabinet doors, laminate flooring, and other engineered wood products. -
Customization:
The tunnel is highly customizable. Options include different conveyor systems (chain, roller, flat-top), varying heat recovery systems to improve efficiency, and custom lengths to achieve the required cure time at your line speed. -
Feature:
-
Fast Curing Times: High air temperature and velocity drastically reduce curing time.
-
High Efficiency: Direct-fired system puts 100% of the heat into the oven.
-
Robust Construction: Built to withstand harsh industrial conditions.
-
Enhanced Safety: Integrated flame supervision and fire suppression systems.
-
-
Support and Services:
Commissioning by certified engineers, compliance documentation for safety systems, and preventative maintenance contracts. -
Packing and Shipping:
Major structural sections are pre-assembled. Internal components like burners and fans are packed securely within the sections to minimize site work. -
FAQ:
Q: Is a direct-fired system safe for curing coatings?
A: Yes, when designed correctly. Our systems use 100% fresh air make-up, and the combustion gases are thoroughly mixed and diluted to safe levels before contacting the product. This is a standard and efficient method for industrial curing ovens.
