詳細情報 |
|||
| 製品名: | カーテンコーティング製品ライン | 寸法: | 38900mm l×2250mm w×1650mm h |
|---|---|---|---|
| トランスミッションは広く制限されています: | 620mm | 生産ライン速度: | 0〜10m/min |
| 電力: | 96KW | 保証: | 1年 |
| ハイライト: | Automatic wood panel curtain coating machine,UV finishing curtain coating line,High-gloss furniture board coating machine |
||
製品の説明

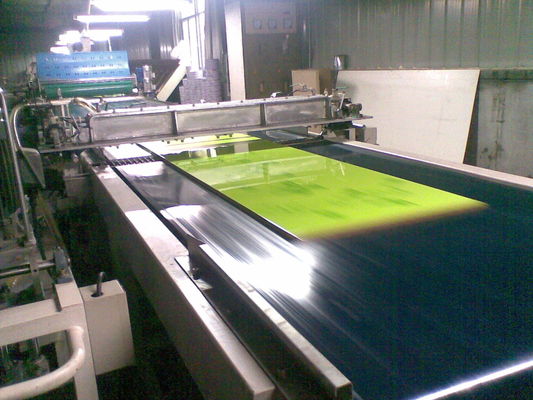

Automatic Wood Panel Curtain Coating Line for Furniture Board UV Finishing: High-Gloss Surface Production Machine
-
Composition of Production Line:
This integrated system comprises an automatic loading unit, precision dust removal station, temperature control chamber, curtain coater, UV curing oven, and automatic unloading & stacking unit. -
Product Description:
Our high-speed automated curtain coating line is engineered for furniture panel, door skin, and laminate flooring manufacturers seeking unparalleled throughput. This system delivers a consistent, high-gloss, or satin finish with exceptional durability, ideal for high-volume production environments. The entire process, from feeding to curing, is seamlessly integrated for maximum efficiency and minimal downtime. -
Technical Parameters:
| Parameter Category | Details & Specifications |
|---|---|
| Model | ACC-2800-Pro |
| Suitable Substrate | MDF, Particle Board, Plywood, Solid Wood Panels |
| Max. Panel Width | 2800 mm (Customizable) |
| Max. Panel Length | 4500 mm (Customizable) |
| Line Speed | 10-40 m/min (adjustable) |
| Coating Material | UV Coatings, PU Coatings |
| Curtain Width | 3000 mm (Standard, Customizable) |
| Control System | PLC + HMI Touch Screen |
-
Application:
Mass production of furniture panels, kitchen cabinets, laminate flooring, door skins, and wall panels. -
Customization:
We offer extensive customization options including line length, conveyor width, curtain coater head capacity, and specific curing solutions to match your factory layout and product requirements perfectly. -
Feature:
-
Ultra-High Speed Curtain Coating for maximum output.
-
Precision Curtain Coating Head for uniform film thickness.
-
Energy-Efficient UV Curing System.
-
Fully Automated Conveyor System.
-
-
Support and Services:
Comprehensive package including installation supervision, operator training, remote troubleshooting, and an extensive inventory of spare parts. -
Packing and Shipping:
All modules are crated in heavy-duty wooden frames with waterproof wrapping for sea freight. Professional export packing ensures safe arrival. -
FAQ:
Q: Can this line handle different panel sizes without lengthy changeovers?
A: Yes, the conveyor and curtain coating system are designed for quick width adjustments to accommodate various panel sizes, minimizing downtime.
